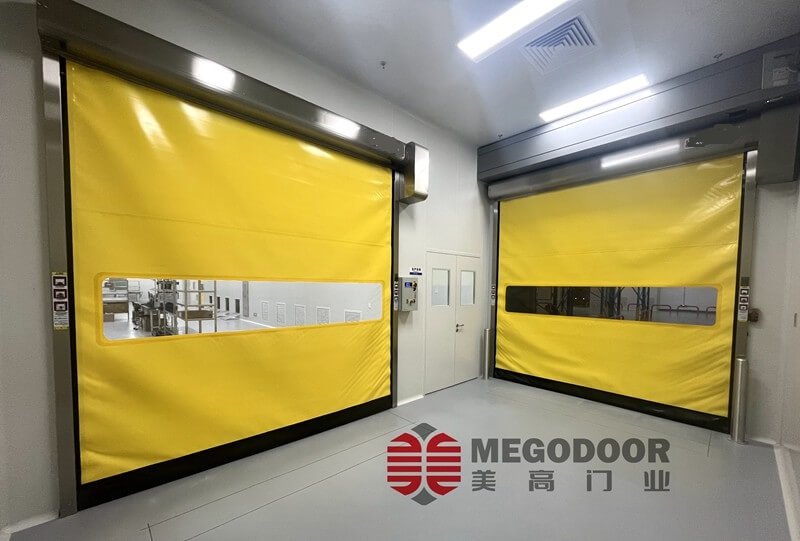

In modern clean factories and automated workshops, high-speed rolling doors have evolved beyond simple physical isolation to become key nodes in intelligent logistics systems. Mego high-speed rolling doors, with their excellent compatibility and control logic, perfectly achieve deep interlocking and linkage with AGV (Automated Guided Vehicle) smart carts and air shower/air lock rooms, creating a fully automated, dust-free production logistics loop.
I. Reconstruction of the Fully Automated Operation Scenario
Let us step into the actual workflow of Mego high-speed doors in an intelligent factory:
Smart Approach: The AGV moves along a preset track toward the high-speed door and automatically transmits an identification signal.
Instant Response: Upon receiving the signal, the high-speed rolling door opens instantly (with speeds up to 0.5-2.5m/s). The AGV passes through seamlessly without needing to stop and wait.
Automatic Reset: Immediately after the AGV passes through the doorway, the door closes automatically, maintaining the pressure difference and cleanliness of the area.
Air Shower Purification: The AGV enters the air shower room. After the entrance door closes, the system automatically initiates the blowing and dust removal process.
Interlocked Unlocking: Once the showering process ends, the exit door automatically opens, allowing the AGV to drive out and proceed to the next process, after which the door closes again.
This entire process requires no human intervention, achieving efficient circulation characterized by “door opens when vehicle arrives, door closes when vehicle passes, and vehicle leaves immediately after showering.”
II. Detailed Explanation of Core Interlocking and Control Logic
1. AGV ↔ High-Speed Rolling Door: Wireless Signal Handshake
Working Principle: Communication is established between the signal transmitter on the AGV and the receiver on the door control system.
Trigger Mechanism: When the AGV arrives at the preset sensing zone, it transmits a specific coded signal. After the door control system identifies this signal, it immediately instructs the motor to open.
Technical Advantages: It supports various methods such as Bluetooth wireless sensing or geomagnetic sensing, ensuring signal stability in complex electromagnetic environments and preventing malfunctions. Factories can customize signal protocols based on their existing AGV brands.
2. High-Speed Rolling Door ↔ Air Shower Room: Safety Interlock and Process Linkage
Dual Interlock (Interlock): This is the core safety logic for cleanrooms. The entrance and exit doors of the air shower room are strictly prohibited from opening simultaneously. The system uses electrical interlocking to ensure that the air shower program can only start after the first door is completely closed and locked. Similarly, the second door can only open after the showering ends. This effectively prevents cross-contamination and air short-circuiting.
Process Linkage (Linkage): The status of the door serves directly as the input signal for the PLC control of the air shower room, achieving full-process automated integration characterized by “blow when door is closed, open when blow stops.”
III. Mego Product Core Technical Specifications
To meet the stringent demands of high-end manufacturing, this series of high-speed doors possesses the following excellent performance:
| Feature Dimension | Detailed Specifications and Advantages |
|---|---|
| Operating Performance | • Speed: 0.5 – 2.5 m/s, infinitely adjustable • Frequency: Standard type: 1000 operations/day; High-frequency customized type可达 5000 operations/day, supporting 24-hour continuous uninterrupted operation |
| Sealing Level | • Structure: Uses zipper-type sealing or high-density brush seals • Effect: Perfectly meets the requirements for dust-proofing, insect-proofing, odor-proofing, and pressure difference control in GMP clean workshops |
| Safety Configuration | • Multi-layer Protection: Standard infrared photoelectric protection, bottom safety airbag, and automatic anti-collision reset function • Emergency Handling: Manual opening during power outages ensures emergency evacuation |
| Interface Compatibility | • Open Protocol: Reserves multiple compatibility interfaces (dry contacts/RS485, etc.), easily connecting with various AGV brands and air shower room control systems |
| Brand Assurance | Mego original manufacturer, reliable quality, and professional technical support |
IV. Application Value and Applicable Industries
Choosing Mego interlocking high-speed rolling doors is not just about buying a door; it is about introducing an intelligent logistics solution that reduces costs and increases efficiency.
Reduce Operating Costs: Automation reduces manual operation links and improves logistics turnover efficiency.
Minimize Maintenance Costs: High-frequency durable design reduces failure rates and extends equipment life.
Environmental Compliance: Strictly conforms to cleanroom standards, helping enterprises pass various quality certifications.
Applicable Industries:
Widely serves fields with extremely high requirements for cleanliness and automation, such as new energy vehicle components, semiconductor electronics, biomedicine, precision instruments, and food processing.
Through the perfect interlocking of AGVs and air shower rooms, Mego high-speed rolling doors help you build the “Ren and Du meridians” of a smart factory, making logistics smarter and production more efficient. If you have special customization needs, please feel free to call the Mego professional technical team to obtain a customized solution.
