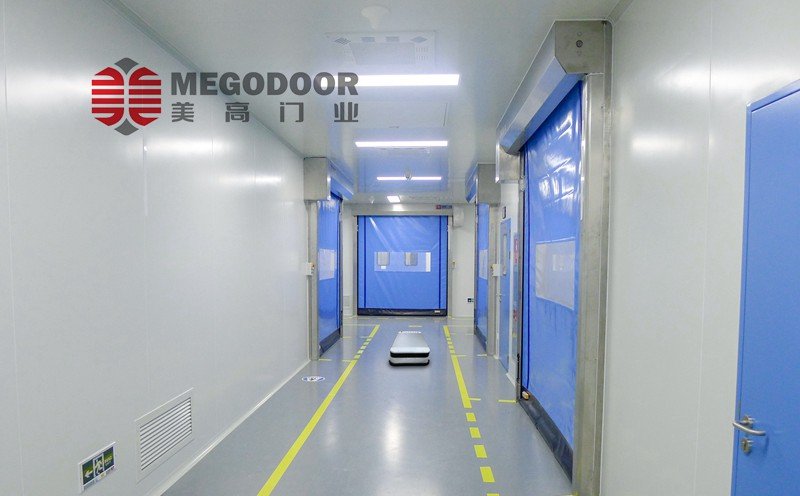

With the in-depth development of Industry 4.0 and smart manufacturing, the intelligent interlocking of AGVs (Automated Guided Vehicles) and high-speed rolling shutter doors is becoming a standard configuration trend in modern chemical, logistics, and manufacturing workshops.
As a core device of Flexible Manufacturing Systems (FMS), AGVs integrate advanced technologies such as microcontrollers, battery drives, non-contact navigation, and wireless communication, achieving full-process automation in material transportation. They not only significantly reduce manual labor intensity and optimize personnel allocation but also build a human-machine collaborative, safe, and efficient production environment, bringing remarkable economic benefits and technological upgrades to enterprises.

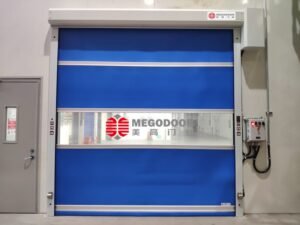

In highly automated workshops, high-speed rolling shutter doors have become key facilities for ensuring environmental cleanliness and energy conservation due to their characteristics of high-frequency opening/closing and rapid isolation. How to seamlessly connect the automatic passage requirements of AGVs with the control system of high-speed rolling shutter doors to achieve full-process intelligent interlocking of “doors open when vehicles arrive, doors close when vehicles pass” is the key to improving overall logistics efficiency.
Core Value of the Interlocking System
Full-Process Unmanned Operation
Triggered by wireless signals (such as Wi-Fi, RFID, or geomagnetic induction), the door body automatically opens when the AGV approaches and quickly closes after passing, without manual intervention, truly opening up the “last meter” of automated logistics.
Efficiency and Safety Combined
The high-frequency fast-start characteristics of high-speed rolling shutter doors (0.8-2.0m/s) perfectly match the operating rhythm of AGVs, avoiding vehicle waiting time, effectively blocking temperature and humidity exchange and dust diffusion between workshops, and preventing safety hazards caused by doors not closing in time.
Intelligent Interlocking Management
The system can set multiple safety logics, such as priority for multiple vehicles queuing, anti-clamping protection, and fault self-diagnosis, to ensure operating stability in complex working conditions.
Technical Implementation Path
Signal Interaction
The AGV’s on-board controller sends an “open door request” to the door control system through a wireless module, and the door control system starts the motor after receiving the command; or position triggering is performed through ground-embedded RFID tags/geomagnetic coils.
Protocol Compatibility
Supports industrial communication protocols such as Modbus and TCP/IP, easily connecting to factory MES or WMS systems to achieve data visualization and remote control.
Safety Redundancy
Equipped with multiple detection methods such as radar sensing and light curtain protection to ensure that the door body can immediately stop or rebound when the AGV stops abnormally or personnel intrude, guaranteeing absolute safety.
The deep interlocking of AGVs and high-speed rolling shutter doors is not just a simple superposition of equipment but a deep integration of logistics automation and building intelligence. It marks the workshop’s transition from “single-point automation” to “full-line intelligence” and lays a solid foundation for enterprises to build green, safe, and efficient factories of the future.
