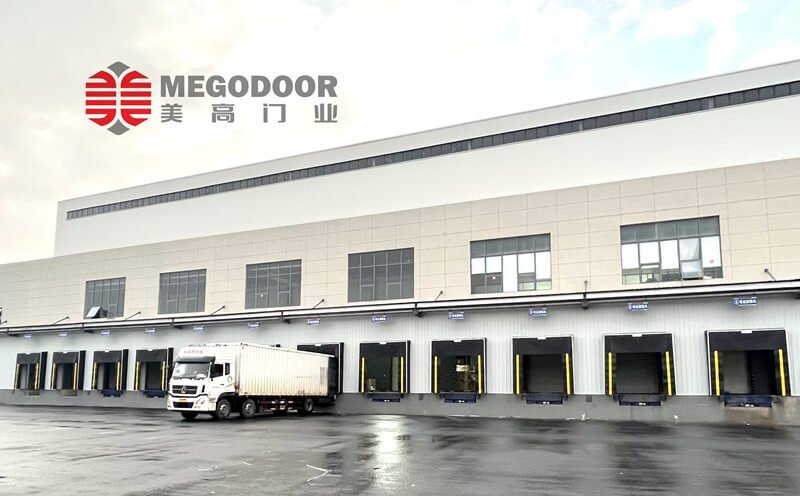

In modern logistics and warehousing systems, environmental control of loading and unloading areas is crucial. The Mechanical Dock Shelter, as an efficient physical isolation device, is mainly made of high-strength soft PVC curtains (commonly black) and is widely used in the warehouse entrances and exits of industries such as food cold chains, precision manufacturing, and pharmaceutical chemicals.

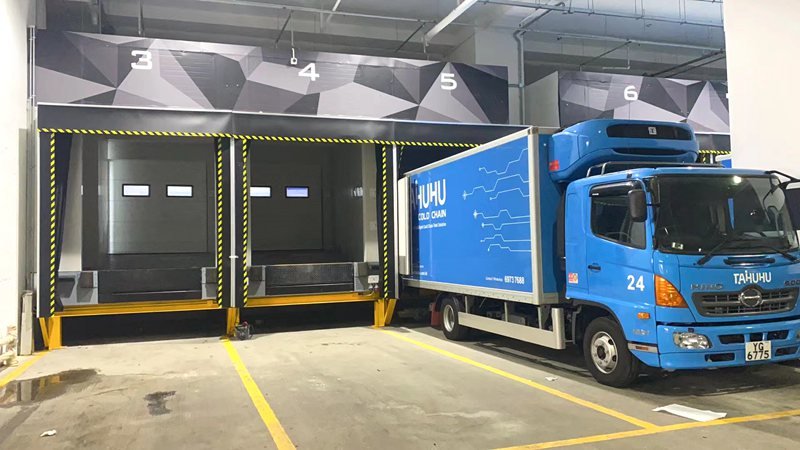

The device is custom-installed according to the dimensions of the loading and unloading port and is fixed around the opening. When the truck reverses into the warehouse, the flexible curtains of the mechanical dock shelter tightly wrap around the rear of the container, forming a temporary “protective cover” that effectively blocks the intrusion of external dust, rain, insects, and hot or cold air. In practical applications, the mechanical dock shelter usually works in coordination with equipment such as fixed hydraulic lifting platforms and thermal insulation rolling doors to jointly form a complete and efficient modern loading and unloading system.
Core Structure and Technical Features
The design of the mechanical dock shelter fully considers durability, adaptability, and sealing effects, with the following main technical highlights:
Telescopic Hinge Frame Design
The frame adopts a unique hinge connection structure with excellent compression and resilience. When the vehicle approaches and squeezes the shelter, the frame can deform flexibly to adapt to the contour of the vehicle body, ensuring tight sealing while avoiding hard damage to the vehicle.
Top Drainage System
The top frame of the shelter is designed as an inclined surface, forming a natural water guide slope. This innovative structure can effectively prevent rainwater from accumulating on the top and quickly drain the accumulated water to both sides, ensuring the dryness of the working area even in bad weather.
Steel Impact Protection Device
To cope with frequent collisions during loading and unloading operations, a sturdy steel protection device is added to the key parts of the shelter. This not only protects the internal curtains and frame structure, extending the service life of the equipment but also greatly reduces maintenance costs caused by accidental collisions.
Bottom Corner Guard and Vertical Shaping Pad
The specially designed bottom corner guard not only acts as a buffer but also forces the curtain to maintain a vertical state, eliminating bottom gaps and significantly improving the airtightness and dustproof effect of the overall system.
High-Rigidity Frame Structure
The overall frame is reinforced and has extremely high structural strength. It can effectively resist lateral pressure, preventing the frame from opening outward under heavy loads or strong winds, ensuring a持久 and stable sealing form.
Full-Specification Size Adaptation
Custom services for various specifications and sizes are provided. Whether it is a small box truck or a large heavy-duty truck, whether it is a standard container or a non-standard vehicle, it can be perfectly adapted to meet the needs of various logistics scenarios.
Working Principle and Operation Process
In the actual operation of logistics terminals, the mechanical dock shelter demonstrates excellent practicality:
Vehicle Positioning: The truck reverses into the loading and unloading port and stops when the wheels touch the ground anti-collision limit block.
Close Fit: When the rear door of the vehicle opens, the elastic curtain of the mechanical dock shelter automatically extends forward under the action of the spring tensioning device and tightly wraps around the rear and sides of the compartment.
Formation of a Closed Channel: At this point, the seal strip at the front of the shelter fits tightly with the rear door of the vehicle, and the curtains on both sides completely cover the body.
Safe Operation: Thus, a relatively closed and clean temporary loading and unloading channel is formed. No matter whether the outside is rainy or extremely cold or hot, the warehouse can always maintain a constant temperature and dust-free environment, ensuring that goods (especially sensitive materials such as food and precision instruments) complete the flow under safe and comfortable conditions.
By introducing mechanical dock shelters, enterprises can not only significantly improve loading and unloading efficiency but also effectively reduce energy consumption and eliminate pest pollution. It is a key facility for building green and intelligent modern logistics parks.
