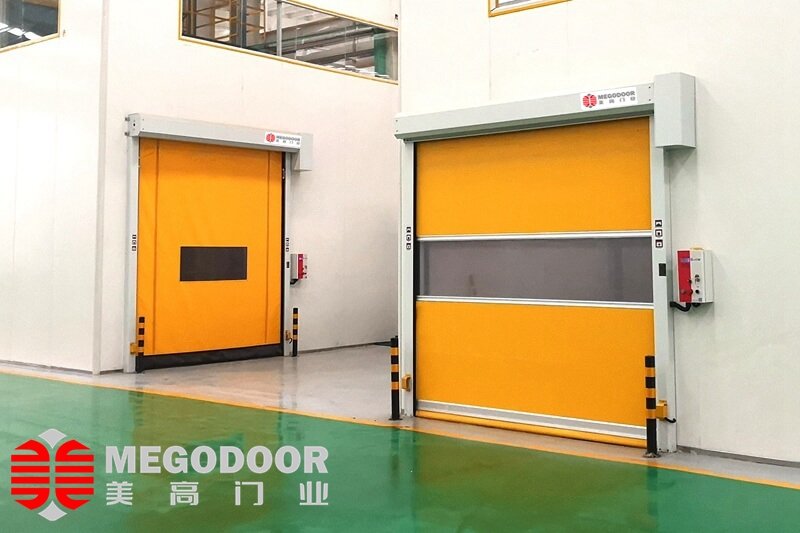

The stainless steel high-speed rolling shutter door meets the environmental quality requirements of food workshops due to its characteristics of rapid opening and closing and efficient operation. With an operating speed of 0.6-2.5 m/s, the door curtain of pharmaceutical and food workshops can quickly complete the opening and closing actions within seconds, thereby isolating air convection to the greatest extent, preventing outdoor polluted air from entering the room, and ensuring that the workshop air quality reaches the required dust-free grade.

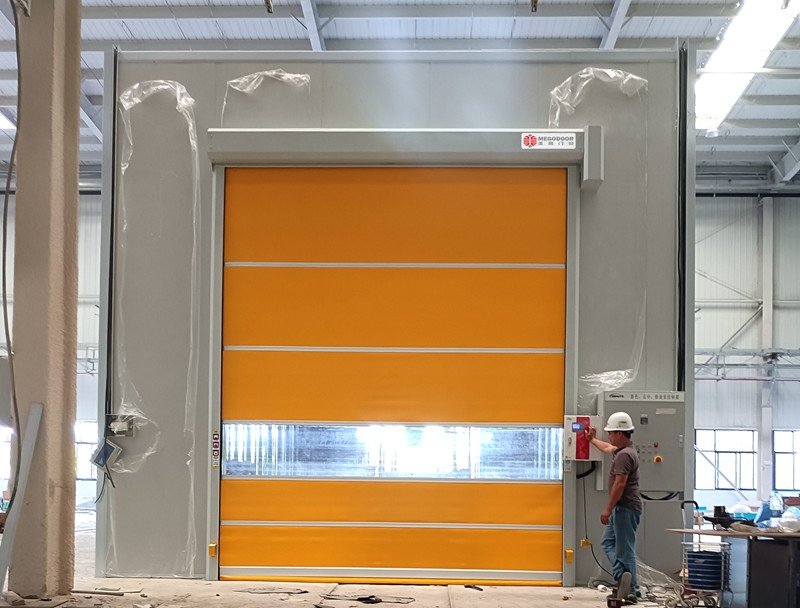

Detailed Introduction to Stainless Steel High-Speed Rolling Shutter Doors
(1) Application Scope of Mego High-Speed Doors: Suitable for various places such as food, medical, chemical, textile, freezing, electronics, printing, supermarket cold assembly, logistics, and warehousing, as well as various passages, large openings, and interior/exterior doors with high windproof requirements.
(2) Materials of Mego High-Speed Doors
1. Frame Material: The door frame is made of 2.0mm thick Baosteel cold-rolled plate steel structure, processed by edge folding and high-quality baking paint technology, with optional colors. Aluminum alloy door frames or stainless steel door frames can be customized according to customer needs.
2. Curtain Materials
- High-density industrial base cloth: Origin: Germany; Thickness: 0.8mm; Technical parameters: Tensile strength (warp/weft): 5700/5100N/5cm; Tear strength (warp/weft): 900/800N; Operating temperature: -30℃~+70℃; Fire rating: French standard NF-P92-503 or German standard M2 DIN4102 B1.
- Fully transparent PVC sheet.
- Transparent viewing window: Optional rectangular or oval shapes, increasing safety and management convenience.
(3) Characteristics of High-Speed Doors: It has multiple functions such as intelligent rapid lifting and lowering, heat preservation, cold preservation, insect prevention, windproof, dustproof, sound insulation, fire prevention, odor prevention, and daylighting. It is widely used in food, chemical, textile, freezing, electronics, printing, supermarket cold assembly, precision machinery, logistics, warehousing, automobile 4S shops, and automobile parts and other places. It is suitable for logistics passages, large openings, and interior/exterior doors with high windproof requirements. It can better meet the needs of high-performance logistics and clean places, save energy, improve air conditioning effects, automatically close at high speed, and improve work efficiency.
2. Opening and Closing Speed: Adjustable speed of 0.6-1.5 m/s.
3. Safety Performance: Orange photoelectric tube flashing light; when the door is opening or closing, the red light flashes as a warning. In case of power failure, a manual handle is attached to gently open and close the door, providing more safety and convenience.
4. Sealing Performance: Equipped with elastic PVC base cloth at the bottom, which can closely fit various uneven grounds to reach the 10,000-level sealing standard. Sealing brushes are installed on both sides of the door pillars to reduce noise and enhance sealing effects.
5. Wind Pressure Resistance Performance: The door curtain is equipped with aluminum alloy wind-resistant strips. The number of wind-resistant strips is selected according to the wind pressure size. The more strips there are, the stronger the wind pressure resistance performance.
6. Power Performance: SEW motor, three-phase 380V, 50HZ, IP55, power of 0.75-3.0kw.
7. Control Methods: Our company provides various manual or automatic control systems to meet user requirements for door opening or closing methods: 1. Manual button control; 2. Manual rope control; 3. Manual remote control; 4. Ground magnetic loop induction control; 5. Photoelectric induction control; 6. Radar induction control; 7. Interlocking mutual lock control; 8. Access control automatic control.
8. Curtain Color Options: Red, yellow, blue, gray, orange-red, transparent, etc.
Stainless steel high-speed rolling shutter doors have multiple functions such as heat preservation, cold preservation, insect prevention, windproof, dustproof, sound insulation, fire prevention, odor prevention, and daylighting. They are widely used in food, chemical, textile, electronics, supermarkets, freezing, logistics, warehousing, and other places. They can fully meet the needs of high-performance logistics and clean places, save energy, automatically close at high speed, improve work efficiency, and create a better work environment.
If you have more questions about high-speed doors, please consult Mego staff.
