Inflatable Dock Shelter
Superior Dock Sealing Solution for Cold Storage, Food Processing and Temperature-Controlled Warehouses
Loading docks are one of the largest sources of energy loss in warehouses, cold storage facilities, and distribution centers. An inflatable dock shelter creates an airtight seal between the building and the vehicle by automatically inflating air cushions around the truck, significantly reducing air infiltration, dust, rain, and temperature loss.
MEGODOOR Inflatable Dock Shelters are manufactured with heavy-duty PVC fabric, durable inflatable air cushions, and an intelligent blower control system. They are ideal for cold chain logistics, food processing, pharmaceutical facilities, cleanrooms, and temperature-controlled warehouses.
What Is an Inflatable Dock Shelter?

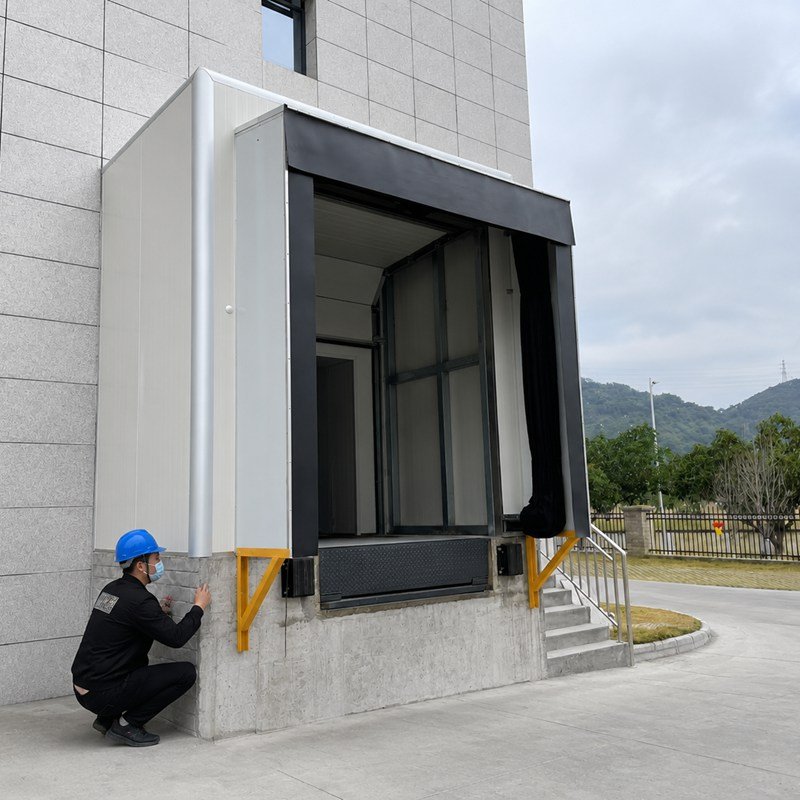

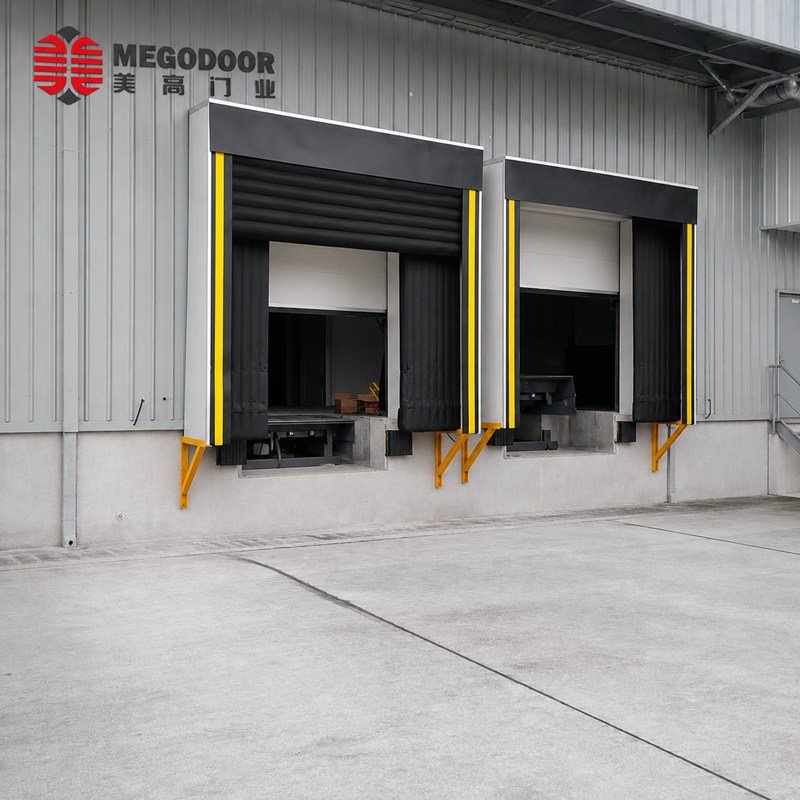

An inflatable dock shelter is an automated loading dock sealing system installed around the dock opening.
After the truck backs into position, the blower automatically inflates the top and side air cushions, creating a tight seal around the trailer.
Once loading or unloading is completed, the cushions automatically deflate, allowing the vehicle to leave without obstruction.
Compared with mechanical dock shelters and foam dock seals, inflatable dock shelters provide superior sealing performance and greater flexibility for different truck sizes.
Why Choose MEGODOOR Inflatable Dock Shelters?
Outstanding Sealing Performance
The inflatable side and top cushions automatically adapt to different trailer dimensions, providing excellent sealing performance.
Benefits include:
- Minimize cold and hot air exchange
- Reduce energy consumption
- Prevent rain, dust and insects from entering
- Maintain stable indoor temperatures
- Improve cold chain efficiency
- Protect temperature-sensitive products
Ideal for cold storage and clean manufacturing environments.
Suitable for Various Truck Sizes
The inflatable design accommodates different vehicle types, including:
- Standard trucks
- Container trailers
- Refrigerated trucks
- Semi-trailers
- High-cube trailers
No manual adjustment is required.
Intelligent Inflation Control System
MEGODOOR inflatable dock shelters feature an automatic control system with:
- High-efficiency blower
- PLC intelligent control
- Automatic inflation
- Automatic rapid deflation
- Motor overload protection
- Operating status indicators
Inflation is completed within 6–10 seconds, ensuring efficient loading operations.
Product Features
- Heavy-duty PVC fabric
- Durable inflatable air cushions
- Galvanized steel frame
- UV-resistant
- Waterproof
- Tear-resistant
- Excellent airtight performance
- Automatic inflation & deflation
- Low maintenance
- Long service life
Technical Specifications
| Item | Specification |
|---|---|
| Model | IDS-01 |
| Brand | MEGODOOR |
| Power Supply | 220V / 380V |
| Control System | Automatic Blower Control |
| Frame | Galvanized Steel |
| Curtain Material | Heavy-duty PVC Fabric |
| Seal Type | Inflatable Air Cushion |
| Inflation Time | 6–10 Seconds |
| Working Temperature | -30°C to +50°C |
| Installation | Wall Mounted |
| Color | Black, Blue or Custom RAL Colors |
| Size | Fully Customized |
Typical Applications
MEGODOOR Inflatable Dock Shelters are widely used in:
- Cold Storage Facilities
- Cold Chain Logistics Centers
- Food Processing Plants
- Pharmaceutical Manufacturing
- Cleanrooms
- Temperature-Controlled Warehouses
- Distribution Centers
- Automated Warehouses
- Logistics Parks
Inflatable Dock Shelter vs Foam Dock Seal
| Feature | Inflatable Dock Shelter | Foam Dock Seal |
|---|---|---|
| Sealing Performance | ★★★★★ | ★★★★☆ |
| Energy Efficiency | ★★★★★ | ★★★★ |
| Vehicle Adaptability | Excellent | Moderate |
| Automation | Automatic | Manual Compression |
| Cold Storage Applications | Excellent | Good |
| Energy Saving | Superior | Good |
Why Choose MEGODOOR?
MEGODOOR specializes in industrial doors and loading dock equipment. Our products are exported to more than 50 countries and regions, serving customers in logistics, cold chain, food processing, pharmaceuticals, electronics, and manufacturing industries.
We provide:
- Custom dimensions
- Custom RAL colors
- Logo printing
- PLC intelligent control
- Integration with sectional overhead doors
- Compatibility with hydraulic dock levelers
- CE-certified products
- Export wooden packaging
- Worldwide technical support
An inflatable dock shelter is the preferred solution for facilities requiring maximum sealing performance and energy efficiency. With intelligent inflatable air cushions, heavy-duty PVC fabric, galvanized steel construction, and automatic blower control, MEGODOOR Inflatable Dock Shelters provide outstanding environmental protection while reducing operating costs. Whether for cold storage, food processing, pharmaceutical production, or temperature-controlled logistics, MEGODOOR delivers reliable, customized, and long-lasting dock sealing solutions for demanding industrial applications.
