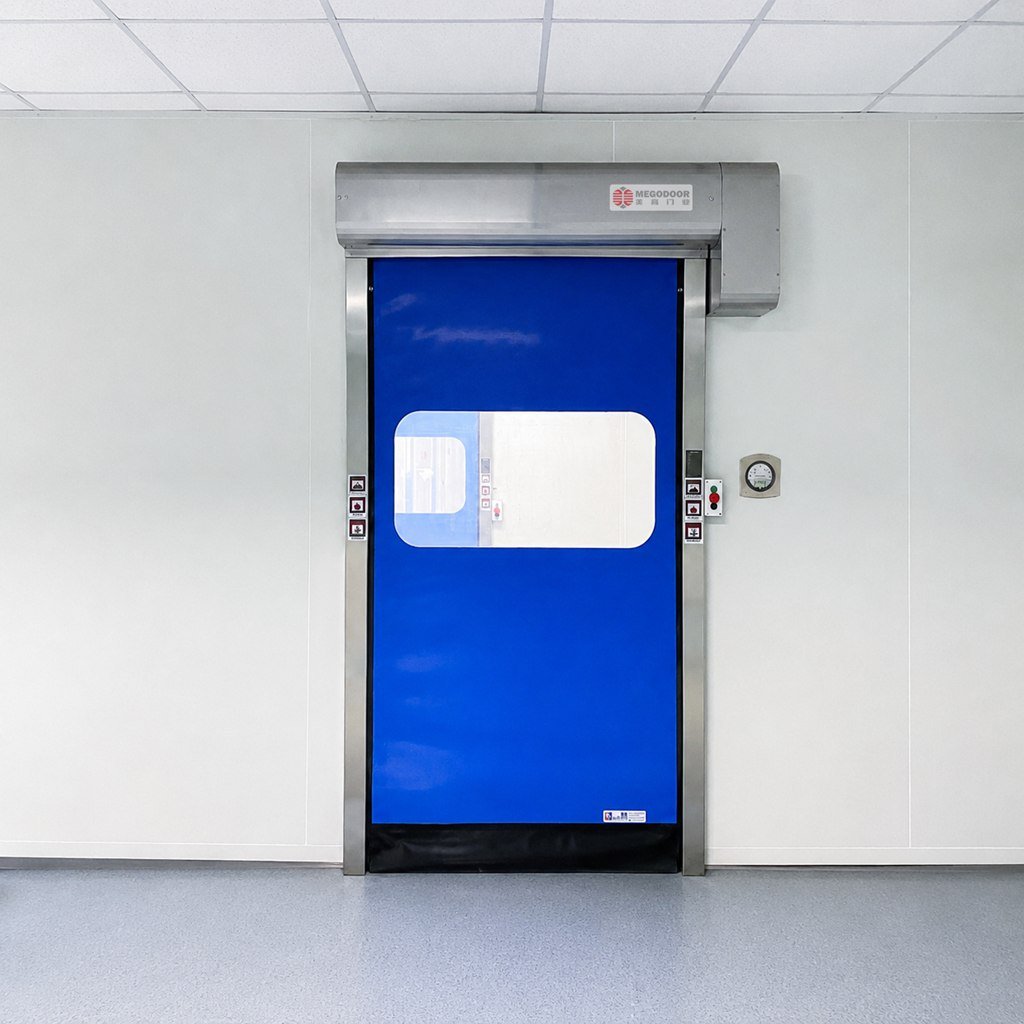

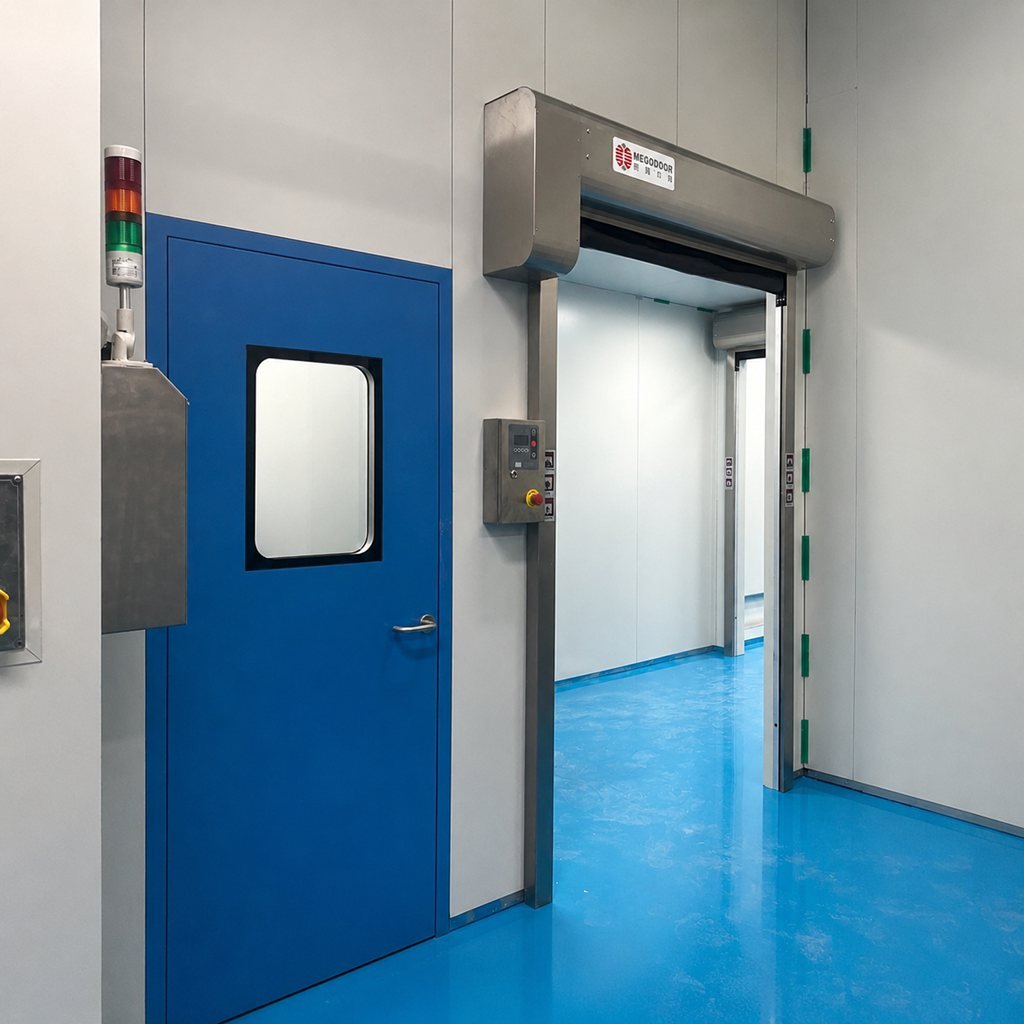

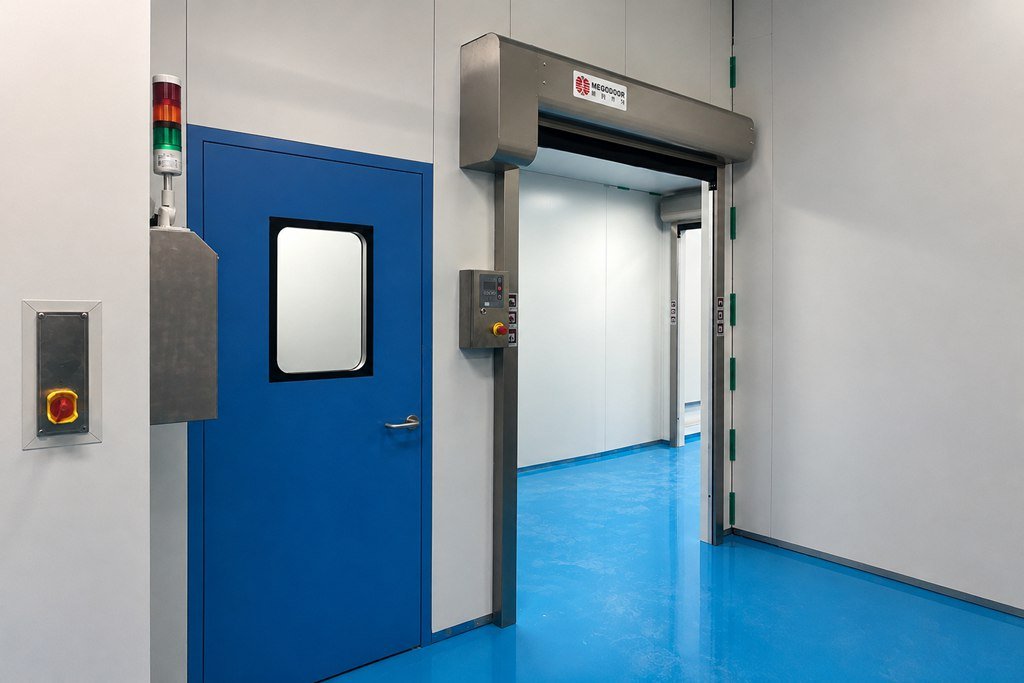

Clean Room High Speed Door
The Megodoor Clean Room High Speed Door features a patented zipper rail system and fully integrated sealed structure, delivering superior insulation, energy efficiency, and contamination control. Designed for high-traffic industrial and cleanroom environments, this door maintains stable indoor temperature and air quality, making it ideal for food processing, pharmaceuticals, cold storage, and logistics centers.
- Self-Repairing System
- Maintains 30 Pa Pressure Differential
- High-Speed Operation：1.5-2.0m/s
- Superior Air Tightness
- High Cycle Durability
- Built-in Photoelectric Safety Sensor
- Wireless Safety Bottom Edge
- AGV Ready (IO & RS485 Communication)
- Anti-Static PVC Curtain Available
- CE Certified & UL Certification Available Upon Request

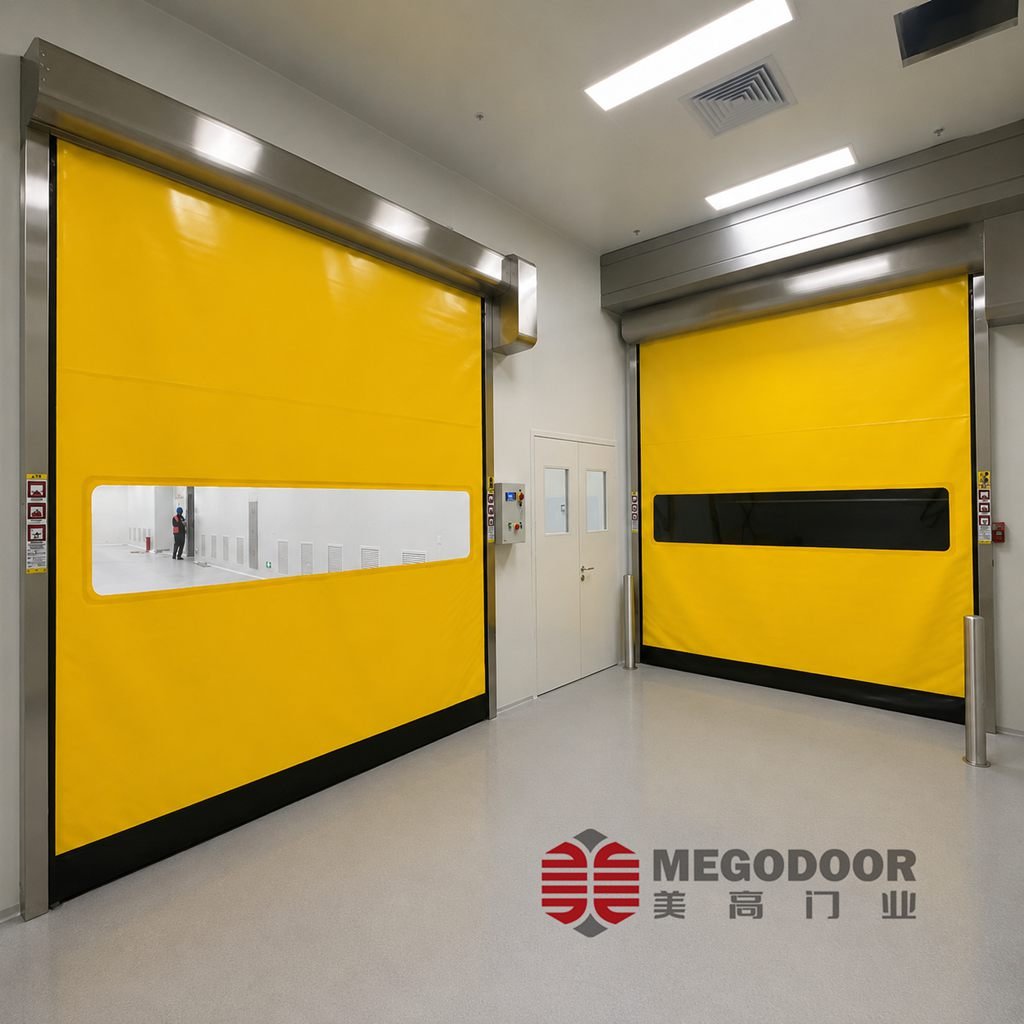

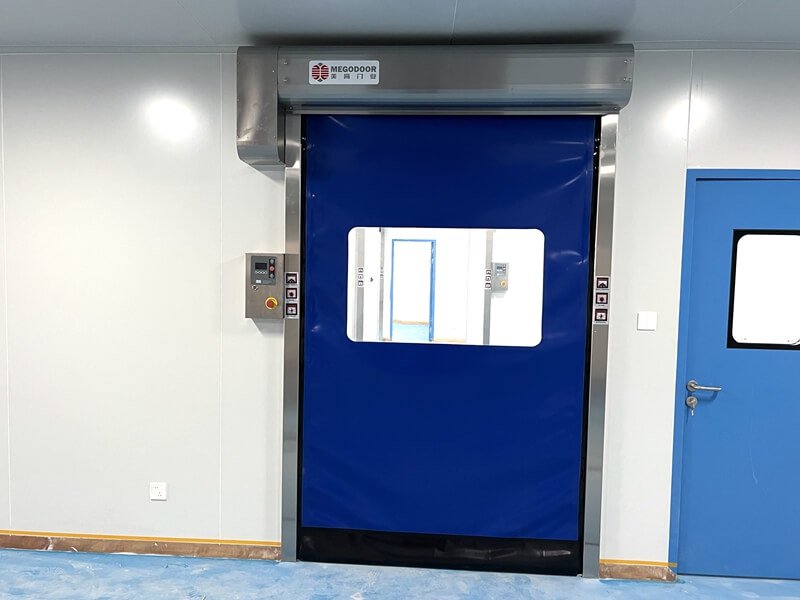

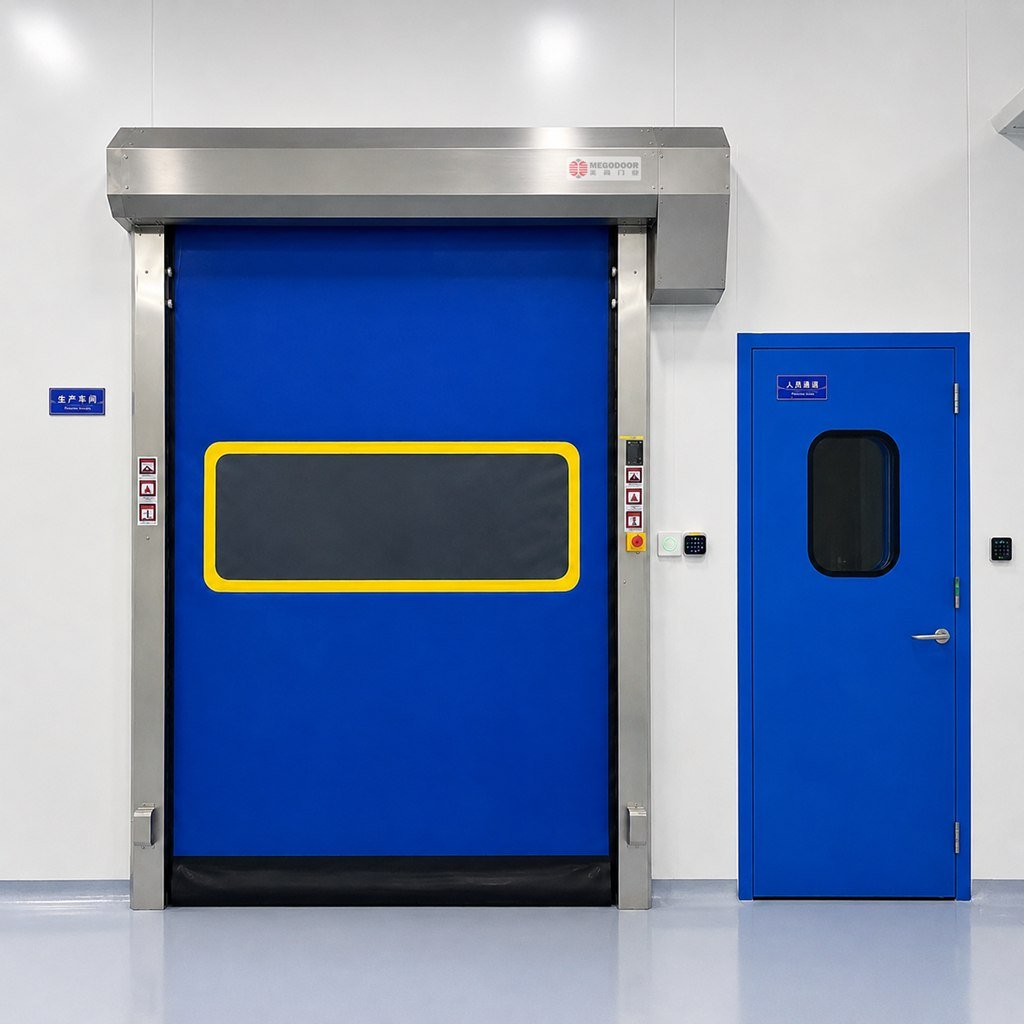

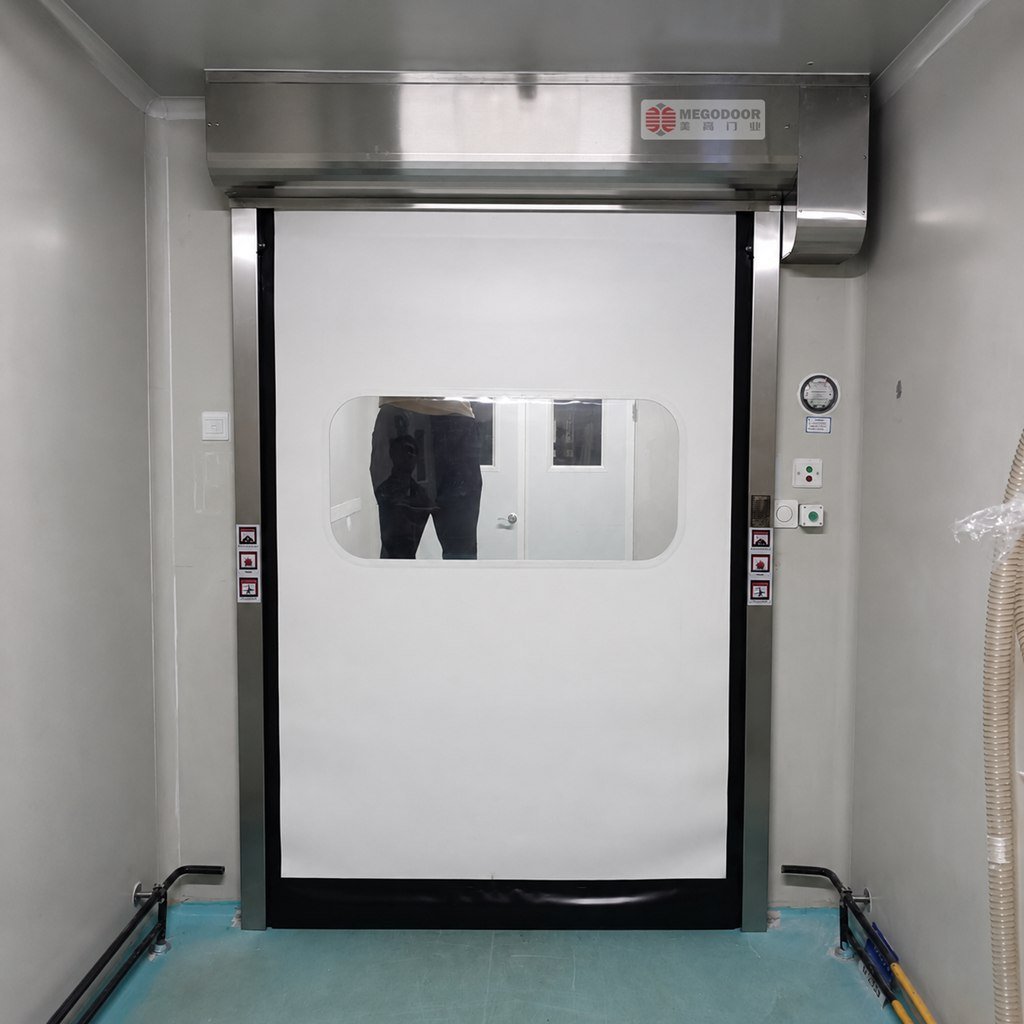

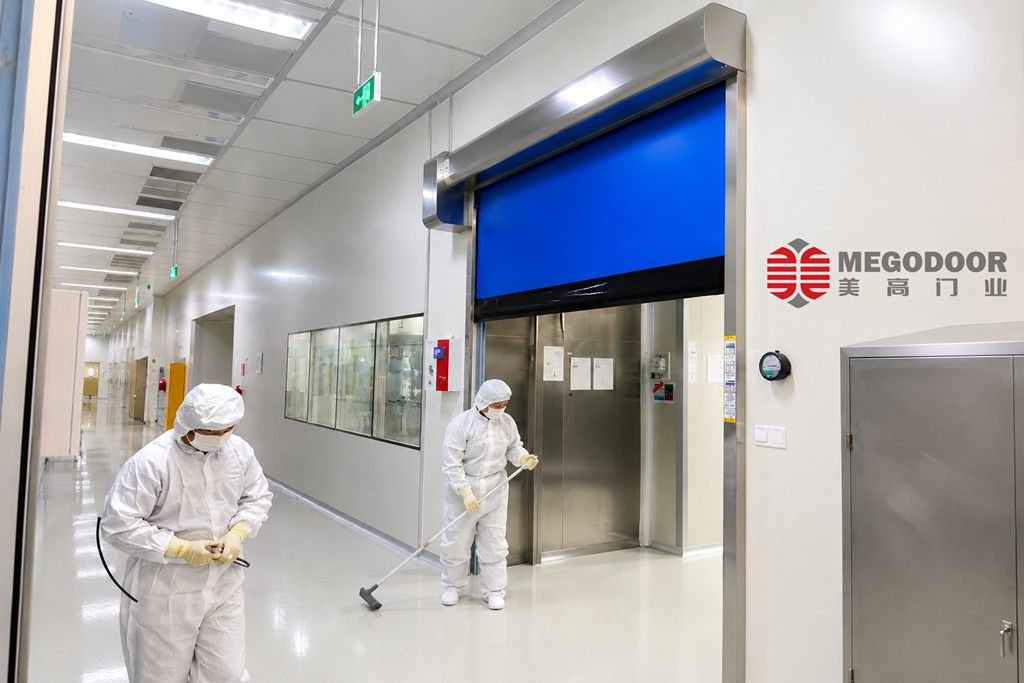

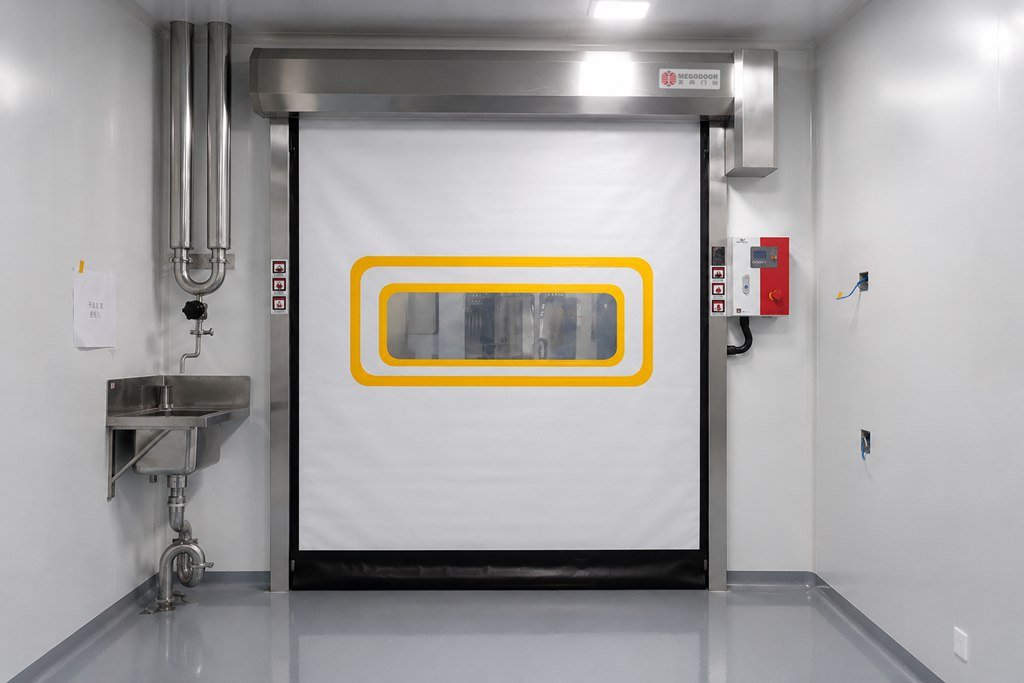

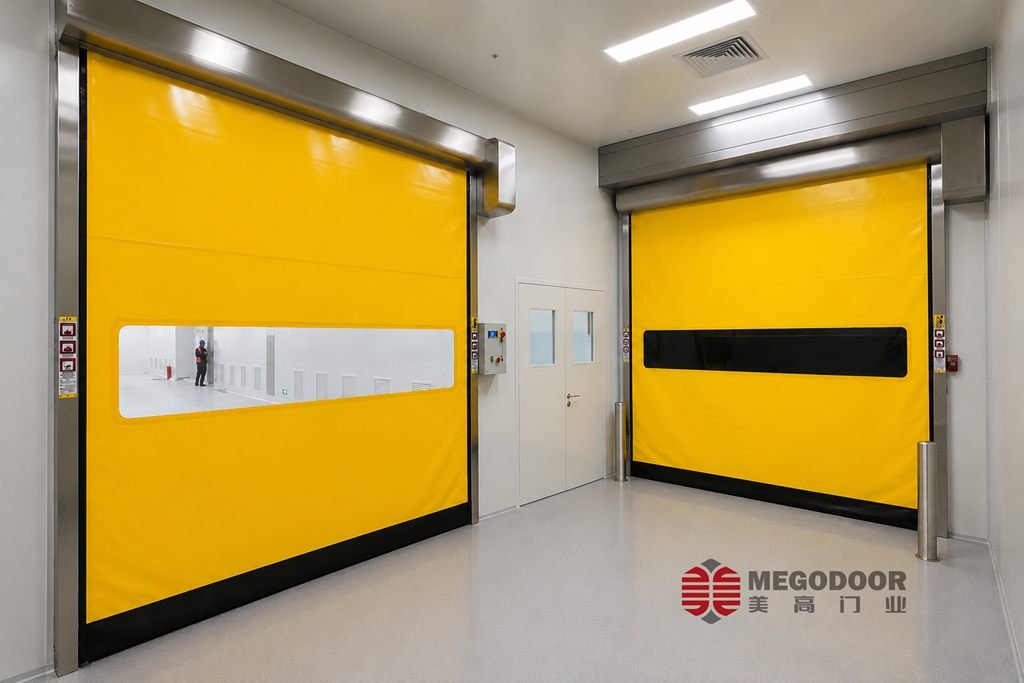

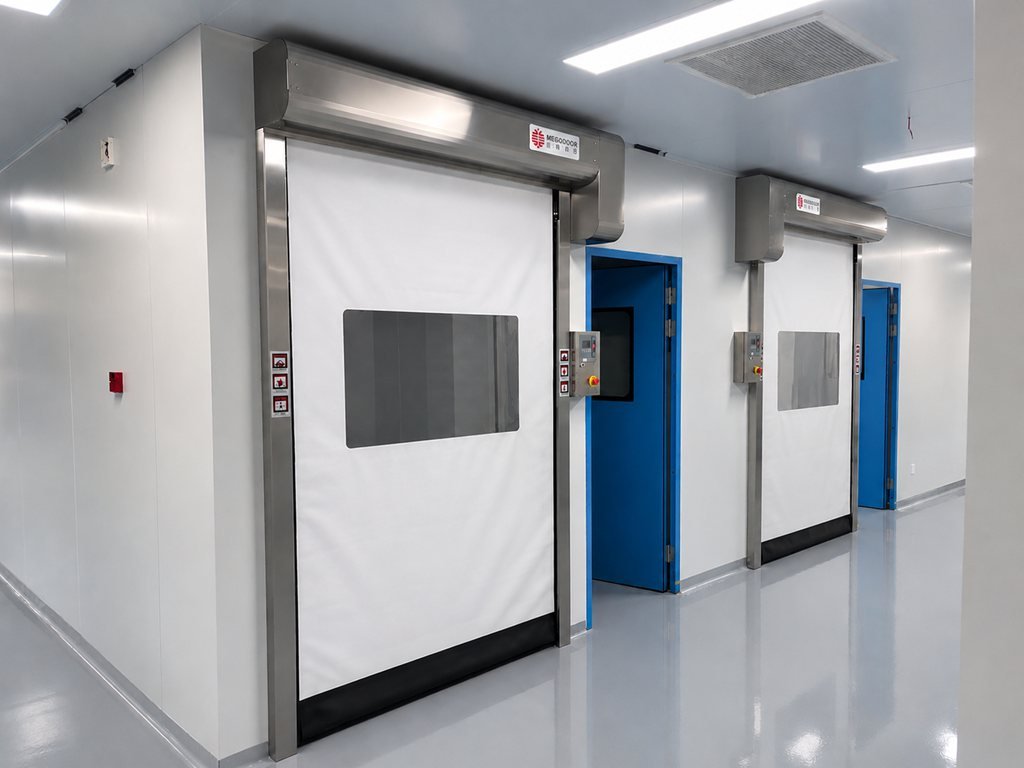

Designed for Cleanrooms and Pharmaceutical Facilities
The MegoDoor Clean Room High Speed Door is specially engineered for clean rooms, pharmaceutical plants, laboratories, food processing facilities, and other environments requiring excellent sealing performance and high operating efficiency.
Featuring an innovative zipper track system, the door automatically reinserts itself into the guide after accidental impact, significantly reducing downtime and maintenance costs. Its superior sealing performance enables the door to maintain 30 Pa differential pressure, making it an ideal solution for GMP pharmaceutical workshops and clean manufacturing environments.
Key Features

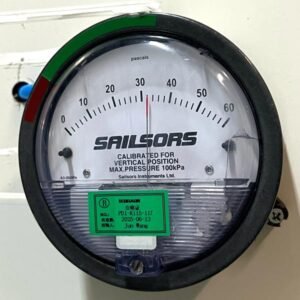

30 Pa Pressure Differential Lock
The zipper sealing system provides outstanding airtight performance, helping maintain a stable 30 Pa pressure differential and minimizing air leakage.
Ideal for:
- Pharmaceutical Workshops
- Cleanrooms
- Laboratories
- Food Processing Plants
- Medical Device Manufacturing

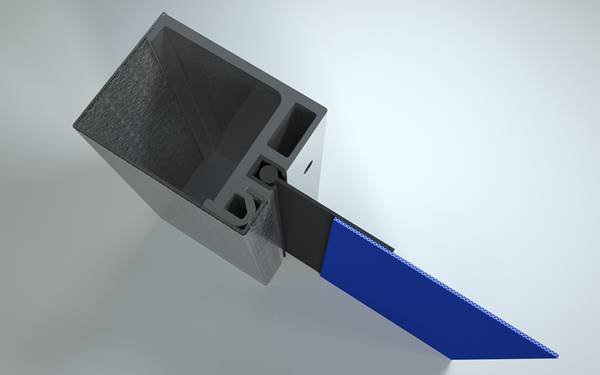

Self-Repairing Zipper System
If the curtain is accidentally impacted by a forklift or AGV, it can automatically disengage from the guide without damage and reinsert itself during the next operating cycle.
Benefits include:
- Reduced downtime
- Lower maintenance costs
- Longer service life
- Improved operational reliability
High-Speed & High-Cycle Operation
Equipped with a servo and variable frequency control system, the door offers smooth, quiet, and reliable operation for high-traffic environments.
Main advantages:
- Fast opening and closing
- Low noise
- Long service life
- Stable performance
Advanced Safety Protection
Standard safety features include:
- Built-in photoelectric safety sensors
- Wireless safety bottom edge
- Automatic self-recovery after impact
- Emergency stop function
These features help protect personnel, forklifts, AGVs, and transported goods.
AGV & Automation Ready
The door supports intelligent factory integration through:
- IO Control
- RS485 Communication
It can seamlessly connect with AGVs, conveyors, automated warehouses, PLC systems, and MES systems.

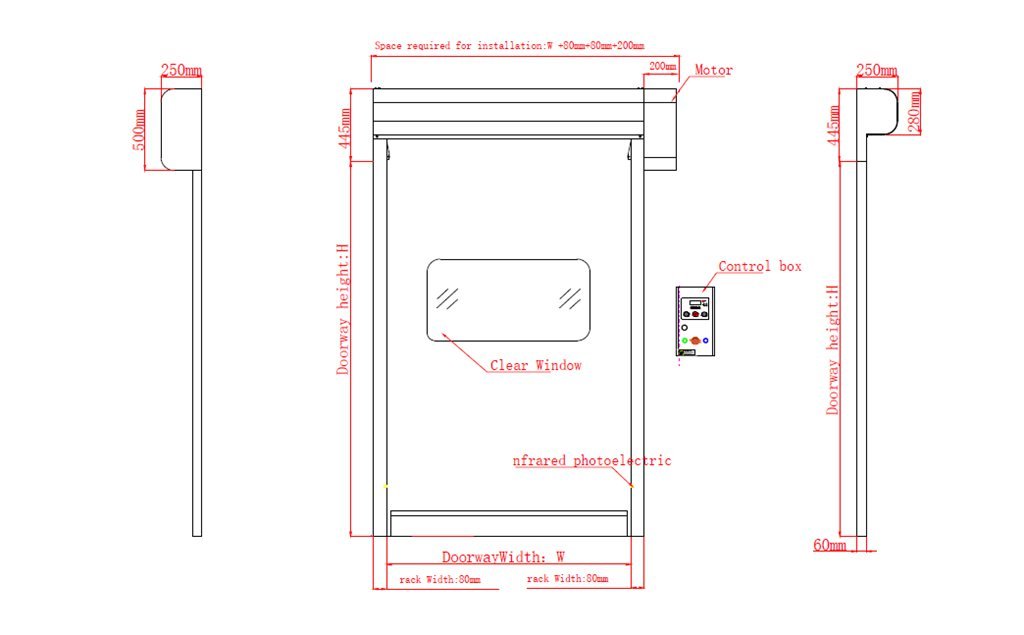

Technical Specifications
| Item | Specification |
| Model | Zipper High Speed Door |
| Brand | MegoDoor |
| Maximum Size | 4000 × 4000 mm |
| Curtain Material | High-strength PVC |
| Curtain Thickness | 1.2 mm / 2.5 mm (Anti-static Optional) |
| Frame Material | 304 Stainless Steel / 316 Stainless Steel / Powder-Coated Galvanized Steel |
| Control System | Servo + Variable Frequency Drive |
| Safety Devices | Built-in Photoelectric Sensor & Wireless Safety Bottom Edge |
| Power Supply | 110V / 220V / 380V (Transformer available for other voltages) |
| Curtain Colors | White, Yellow, Red, Grey, Blue, etc. |
| Communication | IO Control / RS485 |
| Pressure Performance | Maintains up to 30 Pa Pressure Differential |
| Certifications | CE Certified; UL Certification Available Upon Request |
Why Choose MegoDoor?
- Specialized industrial door manufacturer
- Extensive cleanroom application experience
- Designed for GMP pharmaceutical facilities
- Custom sizes and configurations available
- Worldwide voltage compatibility
- AGV and factory automation integration
- Exported to more than 50 countries
- Professional engineering and after-sales support
MegoDoor delivers reliable, high-performance zipper high-speed doors that improve production efficiency, reduce maintenance costs, and provide superior environmental control for modern industrial facilities.
