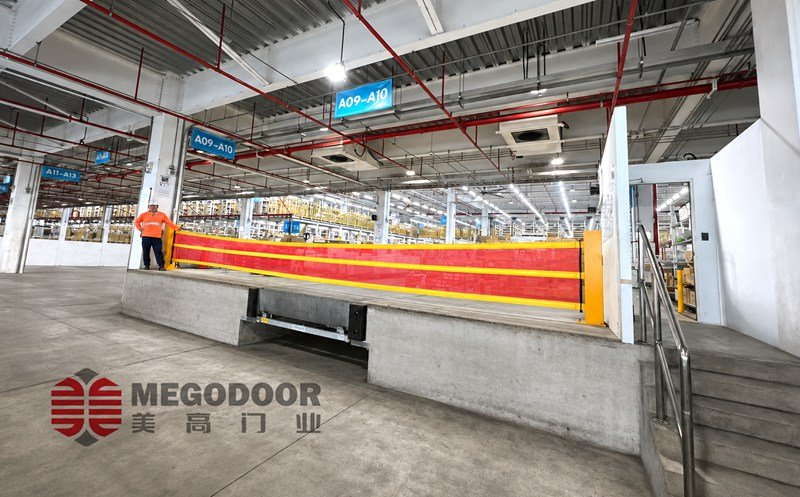

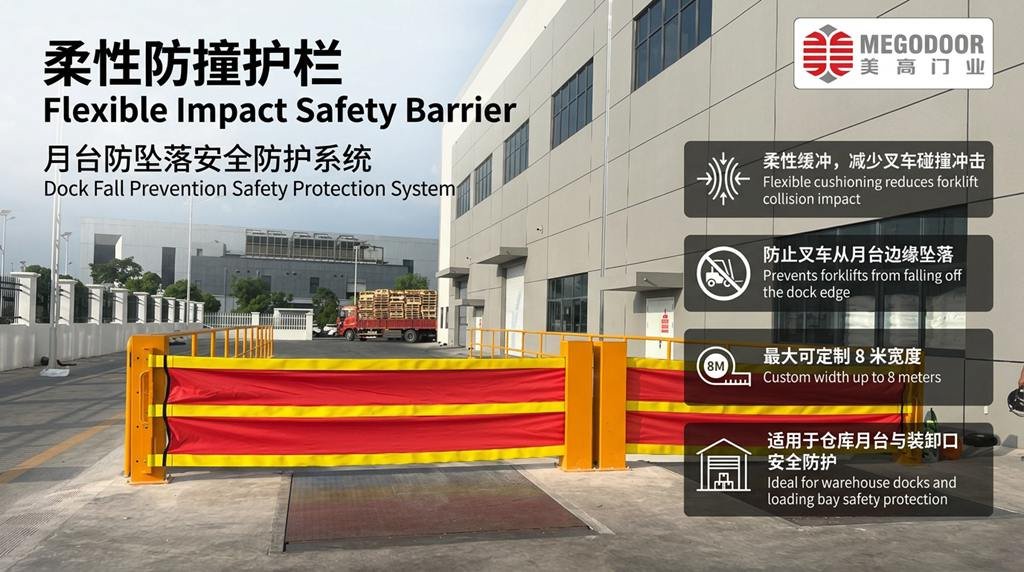

Retractable Dock Safety Barrier

Loading docks are high-risk areas in warehouses, logistics centers, manufacturing plants, and distribution facilities. When no truck is parked at the dock, the open platform edge can create a serious fall hazard for employees, forklifts, pallet trucks, and cargo-handling equipment.

To improve loading dock safety, Megodoor provides retractable anti-fall safety barriers designed to close off open dock edges during non-operating periods. The barrier can be opened or closed according to loading requirements, helping reduce the risk of personnel, equipment, or goods falling from the platform.

Retractable Design for Different Dock Widths

The Megodoor retractable dock safety barrier can be customized with a maximum expansion width of up to 8 meters. However, to maintain better structural stability and more reliable impact resistance, we recommend keeping the effective barrier width within 5 meters whenever possible.For wider loading bays, multiple safety barriers can be installed in sections according to the actual dock layout.The telescopic structure allows the barrier to occupy less space when folded. It can be quickly extended to close the dock opening and retracted when trucks need to enter the loading position. This design is especially suitable for loading bays that require frequent daily operation.

Strong Impact Resistance

The barrier uses a reinforced structural design with horizontal protective beams. When a forklift, trolley, or worker accidentally approaches the dock edge, the barrier provides effective physical protection and helps prevent falls.

The product has undergone an impact test in which a 3,389 kg vehicle directly struck the center of the retractable barrier at a speed of 3 km/h. The test demonstrates the barrier’s ability to withstand low-speed impact in industrial loading environments.

Suitable for Dock Safety Management

According to industrial safety requirements, loading platforms should be fully protected when they are not being used. The edges of the dock should also be closed to prevent employees, forklifts, and cargo from falling.

The Megodoor retractable dock barrier can be used together with industrial doors, dock levellers, dock shelters, vehicle restraints, traffic lights, and loading dock control systems to create a more complete loading bay safety solution.

Typical applications include:

• Logistics and distribution centers
• Manufacturing plant loading docks
• Cold storage warehouses
• Food and pharmaceutical facilities
• E-commerce warehouses
• Automotive and machinery plants
• High-frequency truck loading areas

Technical Specifications

Component	Item	Specification
Large housing	Height	1205 mm
Large housing	Width	250 mm
Large housing	Length	253.5 mm
Large housing	Base plate size	336 × 336 mm
Small housing	Height	1205 mm
Small housing	Width	123 mm
Small housing	Length	250 mm
Small housing	Base plate size	214 × 340 mm
Overall	Total weight	121 kg
Custom size	Maximum expansion width	Up to 8 m
Recommended size	Suggested effective width	Within 5 m

Advantages of the Megodoor Retractable Dock Barrier

The product combines safety, flexibility, and convenient operation. Its main advantages include a compact telescopic structure, customizable width, strong visual warning, reinforced horizontal beams, and suitability for frequent loading dock operation.The yellow safety finish improves visibility inside warehouses and loading areas, allowing operators to identify the protected zone quickly. The floor-mounted structure also provides a stable fixing point for long-term industrial use.As a professional industrial door and loading dock equipment supplier, Megodoor can provide customized retractable dock safety barriers according to the platform width, installation space, operating frequency, and on-site safety requirements. We can also integrate the barrier with dock levellers, dock shelters, industrial doors, and other loading bay equipment to provide a complete dock safety solution.
