110V Voltage High-Speed Door

The 110V voltage high-speed door by Meigao Door Industry is an industrial rapid door specially designed for overseas factories, exported equipment, and international engineering projects. The product can be configured with a 110V motor and control system according to the country of use, on-site power conditions, and equipment control requirements. It also supports customized voltages such as 220V, 380V, and 480V to meet industrial power standards in different countries and regions.

For projects using 277V power supply, a dedicated transformer can be configured to convert the voltage, ensuring stable operation of the motor, control system, and safety devices. Before production, it is necessary to confirm the on-site voltage, single-phase or three-phase power, frequency, and equipment power to select the appropriate electrical solution.

Multiple Voltage Options Available

Industrial power standards vary across countries and regions. In China, high-speed doors commonly use 220V or 380V power, while in the United States and some overseas projects, voltages such as 110V, 120V, 277V, or 480V may be used. If the electrical configuration of the door does not match the on-site power supply, it may result in failure to start, unstable operation, or damage to electrical components.

Meigao Door Industry can provide the following voltage configurations based on project requirements:

  • 110V high-speed door
  • 220V high-speed door
  • 380V high-speed door
  • 480V high-speed door
  • Transformer available for 277V projects
  • Optional 50Hz or 60Hz frequency
  • Single-phase or three-phase power customizable

When making an inquiry, customers should provide the project location, on-site voltage, frequency, phase type, and certification requirements. Meigao Door Industry will determine the appropriate motor, control box, and electrical protection solution based on door size, operating frequency, and motor power.

Optional CE and UL Certification

For Europe, North America, and other overseas markets, the 110V high-speed door can be equipped with motors, controllers, circuit breakers, power supplies, terminals, and safety components that comply with CE or UL standards.

CE configuration is suitable for European and international projects, while UL-certified electrical components and control systems are available for the United States, Canada, and North American equipment integration projects, facilitating installation, power connection, and project acceptance.

It should be noted that complete machine certification, control system certification, and component certification may differ in scope. If specific CE or UL certification requirements are needed, they should be clarified before confirming the technical solution. Meigao Door Industry can select appropriate configurations based on customer standards.

High-Speed Operation for Improved Efficiency

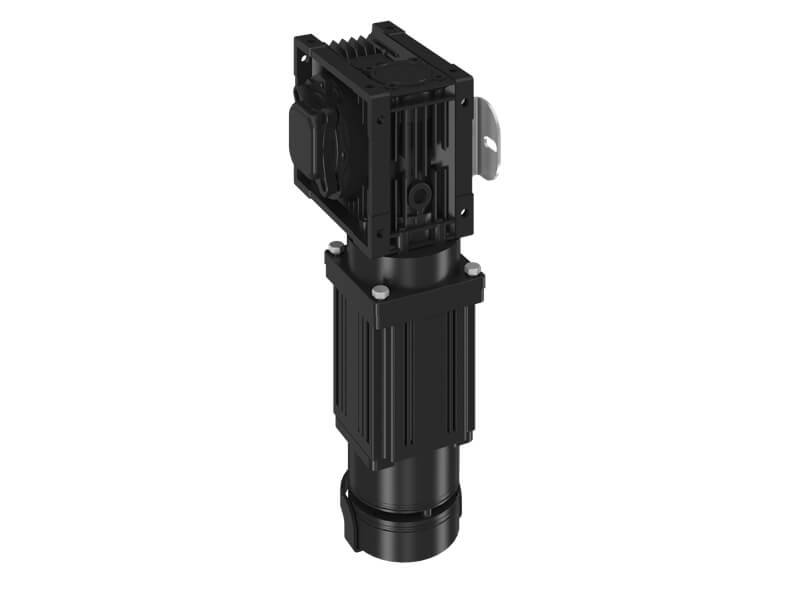

The 110V high-speed door adopts a high-speed drive and frequency conversion control system. The opening speed typically reaches 0.8–2.0 m/s and can be adjusted according to door size, usage frequency, and site conditions.

Compared with traditional rolling doors, high-speed doors reduce waiting time for personnel, forklifts, and logistics vehicles, minimize air exchange between indoor and outdoor environments, and help improve dust control, isolation, insulation, and environmental management.

The product is suitable for installation in industrial plants, automated production lines, logistics warehouses, food processing workshops, clean rooms, robotic workstations, and equipment protection areas.

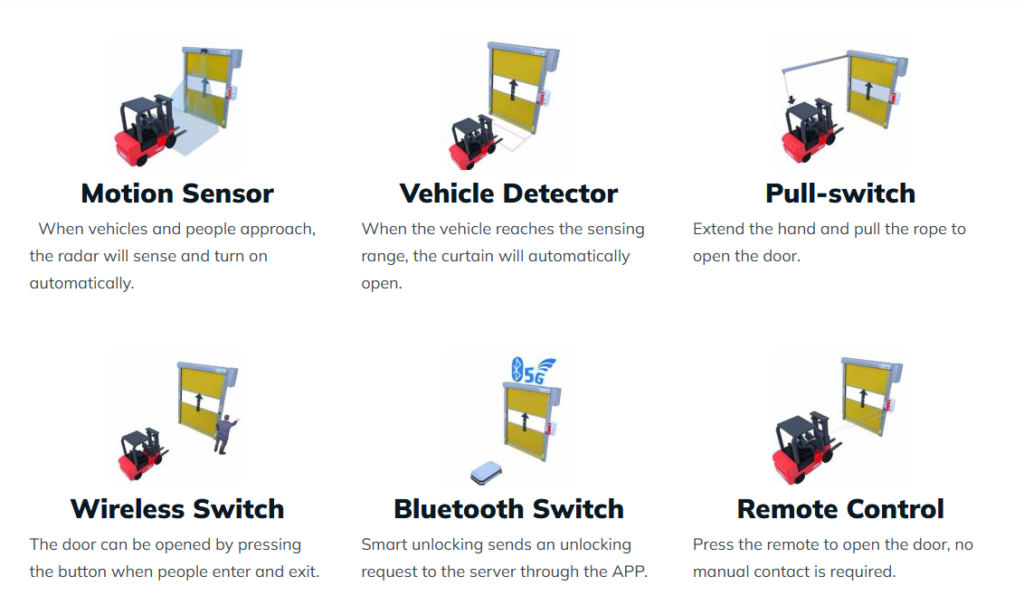

Multiple Activation Methods Supported

Depending on different application scenarios, the high-speed door can be equipped with various opening and control methods:

  • Radar sensor
  • Pedestrian and vehicle separation radar
  • Ground loop sensor
  • Pull cord switch
  • Remote control
  • Manual push button
  • Access control system
  • Photoelectric sensor
  • AGV automatic opening
  • Equipment signal linkage
  • Automatic delay closing

For logistics areas with frequent forklift traffic, radar or ground loop sensors are recommended. For automated production lines and equipment integration projects, the door can be controlled via PLC, I/O signals, or dry contacts for automatic operation.

Multiple Safety Protection Features

The 110V high-speed door can be equipped with infrared safety sensors, safety bottom edge, safety light curtain, and audio-visual warning devices.

When obstacles such as personnel, vehicles, or objects are detected during door closing, the door will immediately stop or reverse, reducing the risk of collision with people, forklifts, or equipment.

According to project requirements, signals such as door open position, closed position, running status, stop status, and fault feedback can also be provided to enable safe integration with robots, AGVs, conveyor lines, and other automated equipment.

Customizable Door Structure

The 110V high-speed door is a non-standard customized product. Door size, frame material, curtain color, and functional configurations can all be designed according to project requirements.

Frame materials include powder-coated galvanized steel, 304 stainless steel, or 316 stainless steel. Curtain options include standard PVC, fully transparent PVC, anti-static curtain, black light-blocking curtain, arc-resistant curtain, and other functional materials.

Customizable product types include:

  • PVC high-speed roll-up door
  • Zipper self-repairing high-speed door
  • Cleanroom high-speed door
  • Equipment protection high-speed door
  • AGV-linked high-speed door
  • Anti-static high-speed door
  • Black light-blocking high-speed door
  • Fully transparent high-speed door
  • Insulated high-speed door

Overseas Export Experience

Meigao Door Industry has extensive experience in exporting industrial high-speed doors and supporting automation equipment. Products have been exported to the United States, Serbia, Turkey, Indonesia, Malaysia, Chile, Fiji, South Korea, as well as Taiwan and Hong Kong regions.

For overseas projects, Meigao Door Industry can customize products based on the destination country’s voltage, frequency, certification standards, and installation conditions. Export services include wooden crate packaging, English product labels, wiring diagrams, installation manuals, and operation guides to facilitate installation and commissioning.

For high-speed doors exported together with automation equipment, customization can also be provided for door frame structure, control box position, wiring terminals, and communication interfaces according to equipment layout and control logic.

Main Technical Parameters

Product Name: 110V High-Speed Door
Available Voltage: 110V, 220V, 380V, 480V
Special Voltage: 277V via transformer conversion
Power Frequency: 50Hz or 60Hz
Opening Speed: Approximately 0.8–2.0 m/s, adjustable
Curtain Material: PVC or customized functional curtain
Frame Material: Powder-coated galvanized steel, 304 stainless steel, 316 stainless steel
Opening Methods: Button, remote control, radar, ground loop, pull cord, access control, equipment signal
Safety Devices: Infrared sensors, safety bottom edge, safety light curtain
Communication Methods: Dry contact, I/O, RS485, etc.
Certification Options: CE and UL certified electrical components available
Size and Color: Customizable
Packaging: Export wooden crate

Meeting Export Customization Needs

High-speed doors can be configured with 110V voltage to solve power compatibility issues for overseas factories and exported equipment. Meigao Door Industry can customize 110V, 220V, 380V, and 480V high-speed doors according to different countries and regions. For 277V power supply projects, appropriate transformers and electrical control solutions can be provided.

By properly selecting voltage, frequency, certified electrical components, safety protection, and communication methods, high-speed doors can better meet the requirements of overseas factories, automation equipment, and international engineering projects.
