AGV Integrated High Speed Doors

With the development of smart manufacturing and automated logistics, Automated Guided Vehicles (AGVs) are widely used in factories, intelligent warehouses, new energy production lines, and logistics centers.Traditional industrial doors often rely on manual operation or conventional sensors, which may not fully meet the requirements of automated material handling systems.MEGODOOR (Nanjing Megodoor Co., Ltd.) provides customized AGV integrated high speed doors, also known as AGV-compatible high speed roll up doors, designed to communicate with AGV control systems, PLCs, and automated equipment.Through signal communication, the high speed door can open automatically when an AGV approaches and close after the vehicle passes, helping reduce manual operation and improve material handling efficiency.

1. How Do AGV Integrated High Speed Doors Work?

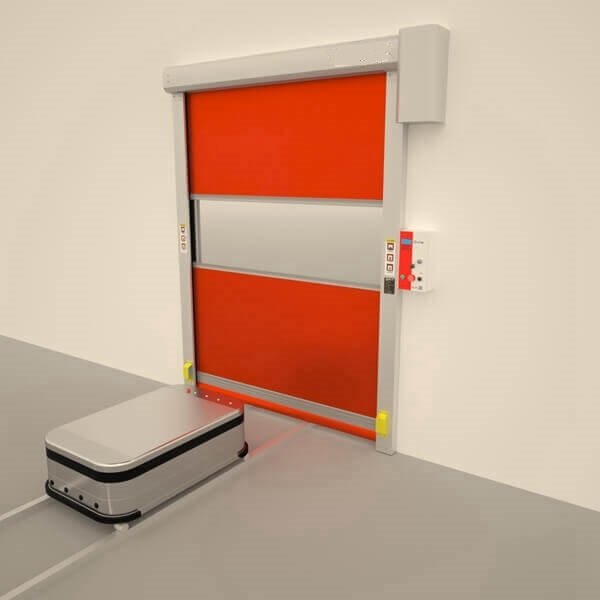

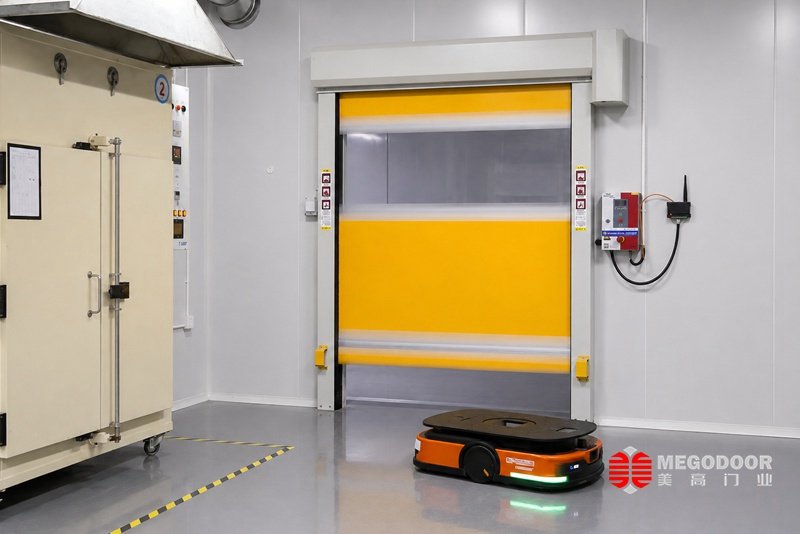

An AGV integrated high speed door system typically consists of a PVC high speed roll up door, servo motor drive system, control panel, safety protection devices, and communication interfaces.

When an AGV approaches the door along its designated route, the AGV controller or fleet management system sends an opening request to the door controller.

After receiving the signal, the door opens automatically. Once the door reaches its fully open position, the controller sends a confirmation signal to the AGV system, allowing the vehicle to pass when all required safety conditions are satisfied.

Typical operating sequence:

AGV Approaches: The AGV or fleet management system sends a door opening request.
Door Opens Automatically: The high speed door controller receives the signal and activates the motor.
Fully Open Confirmation: The door controller sends a fully open status signal to the AGV system.
AGV Passes Through: The AGV proceeds after the control system confirms the required conditions.
Door Closes Automatically: After the AGV clears the doorway, the door closes according to the configured control logic.

This automated process reduces the need for manual door operation and supports coordinated material handling.

2. Multiple Communication Interfaces for AGV Integration

MEGODOOR AGV integrated high speed doors can be equipped with different communication interfaces depending on the customer’s automation requirements.

Digital I/O Communication

Digital input and output signals can be used to transmit door opening commands, closing commands, and door status feedback.

This solution is suitable for automated equipment using PLCs or digital I/O interfaces.

RS485 Communication

Depending on the selected controller, an RS485 communication interface can be provided for data exchange through an agreed communication protocol.

This option is suitable for industrial control systems equipped with compatible serial communication interfaces.

Ethernet Communication

For industrial automation projects requiring network communication, Ethernet interfaces can be configured with compatible control systems and communication modules.

This allows the door controller to exchange information with PLCs, AGV fleet management systems, or other automation equipment.

Wireless Communication

Optional wireless communication modules can be integrated according to site requirements, allowing the AGV system to transmit door activation signals without certain wired control connections.

Communication protocols, interface specifications, and signal requirements should be confirmed during project planning.

3. High Speed Operation for Automated Logistics

MEGODOOR AGV integrated high speed doors use servo motor drive systems to provide automatic opening and closing.

Typical opening speeds range from 0.8 to 1.2 m/s, depending on door dimensions and configuration. Other operating speeds can be considered according to project requirements.

Fast opening and closing help reduce AGV waiting times at doorways and support more efficient material movement between different production areas.

For cleanrooms, temperature-controlled workshops, and warehouses, the door sealing system also helps reduce air exchange, dust infiltration, and temperature fluctuations.

4. Multiple Safety Protection Options for AGV Traffic

AGV integrated high speed doors need to coordinate their operation with automated vehicles and the surrounding equipment.

MEGODOOR offers various safety protection options according to project requirements.

Infrared Photoelectric Sensors: Detect people, vehicles, or obstacles in the doorway and prevent closing according to the configured control logic.
Wireless Safety Edge: Detects contact with obstacles and triggers the configured stopping or reversing response.
Safety Light Curtains: Provide additional obstacle detection across the door opening.
Emergency Stop Devices: Allow operators to stop door movement in emergency situations.
Door Position Signals: Provide fully open and fully closed status feedback to the AGV controller or PLC system.

For automated logistics applications, MEGODOOR recommends using the fully open door confirmation signal as one of the conditions for AGV passage, rather than relying only on the door opening command.

The specific safety interlocking arrangement should be designed according to the AGV control system, site risk assessment, and applicable equipment safety requirements.

5. Customizable Door Structures and Materials

MEGODOOR provides customized AGV integrated high speed doors based on factory environments, doorway dimensions, and automation requirements.

Door Frame Materials

Powder-coated galvanized steel
304 stainless steel
316 stainless steel

Door Curtain Options

Industrial flexible PVC curtains
PVC curtains with transparent vision windows
Different curtain thicknesses and colors
Specialized curtain materials for specific applications

Optional Equipment

Servo motor and automatic control system
Radar sensors, photoelectric sensors, and push buttons
External limit switches
PLC and AGV communication interfaces
Anti-collision and sealing structures
Customized operating voltages and electrical components

Different structural and electrical configurations can be selected for general industrial workshops, cleanrooms, and automated logistics passages.

6. Applications of AGV Integrated High Speed Doors

Smart Manufacturing Factories

Suitable for automotive manufacturing, electronics, new energy production, and machinery manufacturing facilities where AGVs transport materials between production areas.

Automated Warehouses

AGVs can communicate with high speed doors when moving goods between storage zones, reducing manual door operations.

Cleanrooms

Suitable for electronics manufacturing, food processing, and pharmaceutical facilities where rapid door operation and sealing help reduce air exchange between different areas.

Temperature-Controlled Workshops

AGV integrated high speed doors help reduce unnecessary door opening time, supporting temperature control and environmental separation.

Automated Production Lines

The doors can communicate with PLCs, AGV fleet management systems, and other production equipment to support coordinated operation.

7. AGV Integrated High Speed Door Manufacturer – MEGODOOR

MEGODOOR (Nanjing Megodoor Co., Ltd.) is a China-based industrial door manufacturer offering PVC high speed roll up doors, cleanroom high speed doors, rigid high speed doors, and customized automation-compatible door systems.

For projects involving AGVs, RGVs, automated conveyors, and robotic production equipment, MEGODOOR provides customized door and electrical control configurations according to project specifications.

Our available solutions include:

AGV and high speed door integration
PLC, digital I/O, RS485, and Ethernet communication options
Fully open, fully closed, and fault status feedback
Photoelectric sensors, safety edges, and optional light curtains
Customized door dimensions, materials, and operating voltages
Electrical configurations for overseas industrial projects
OEM industrial door manufacturing

For AGV integrated high speed door projects, customers are advised to provide the AGV communication protocol, control signal requirements, door opening dimensions, operating voltage, and workflow specifications before production.

These details help determine the appropriate door configuration and communication solution.
