Interlocking High Speed Doors

Interlocking High Speed Doors are industrial doors designed for cleanrooms, food processing plants, pharmaceutical facilities, electronics manufacturing, and logistics warehouses. Through an electrical interlocking control system connecting two or more high speed doors, only one door can open at a time while the others remain closed.

This interlocking operation helps reduce air exchange, dust infiltration, and cross-contamination between different production areas, making it suitable for industrial environments requiring controlled cleanliness, temperature, and environmental stability.

1. How Interlocking High Speed Doors Work

An interlocking high speed door system typically consists of high speed roll up doors, control units, activation sensors, and safety protection devices.

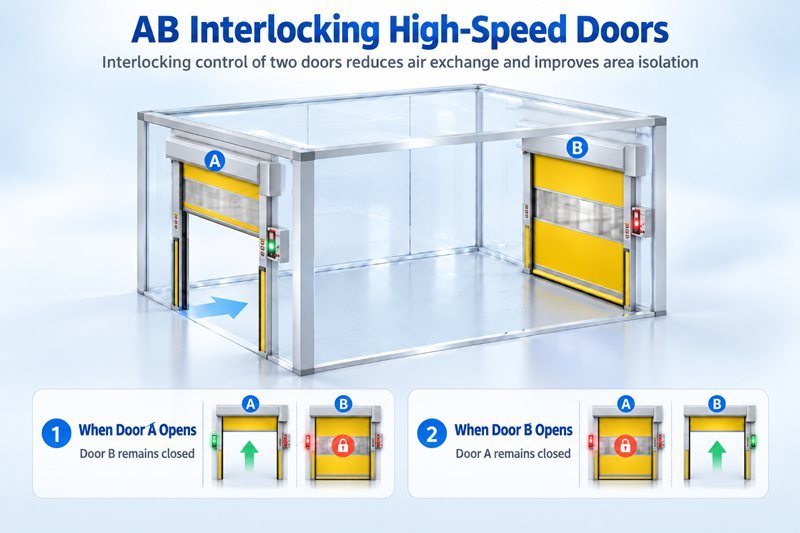

Two doors are installed between different areas and connected through an electrical interlocking control system. When the first door opens, the second door remains closed. Only after the first door is completely closed will the control system allow the second door to open.

Depending on site requirements, various activation methods are available, including radar sensors, induction loops, photoelectric sensors, pull cord switches, and push buttons.

The control system can also communicate with PLCs, automated machinery, AGV/RGV systems, and other industrial automation equipment.

2. High Speed Operation and Reduced Air Exchange

MEGODOOR interlocking high speed doors are equipped with high speed motors and automatic control systems, allowing fast opening and closing to reduce waiting times for personnel, forklifts, and material handling equipment.

Through coordinated interlocking control, the two doors are prevented from opening simultaneously during normal operation, helping minimize air exchange between different areas.

This makes the doors suitable for cleanrooms, temperature-controlled workshops, and production facilities where dust control and environmental stability are important.

3. Multiple Safety Protection Systems

MEGODOOR interlocking high speed doors can be equipped with various safety protection devices, including safety photoelectric sensors, wireless safety edges, emergency stop buttons, and alarm systems.

When a person, vehicle, or obstacle is detected in the doorway, the door can stop closing or automatically reopen according to the configured safety control logic.

For automated production lines, additional signal interfaces are available, including door fully open signals, door fully closed signals, and fault status outputs.

These functions allow the doors to communicate with production equipment and automation systems for coordinated operation.

4. Customizable Door Structures and Materials

MEGODOOR provides customized interlocking high speed doors based on different industrial applications and installation environments.

Available configurations include flexible PVC curtains, transparent vision windows, stainless steel frames, and galvanized steel structures.

For cleanroom applications, 304 stainless steel frames are available to meet specific hygiene and corrosion-resistance requirements. For general industrial workshops, galvanized steel frames provide a practical and durable option.

Door curtain colors, dimensions, opening speeds, activation methods, control systems, and safety features can all be customized according to project requirements.

5. Applications of Interlocking High Speed Doors

MEGODOOR interlocking high speed doors are suitable for a wide range of industrial environments, including:

• Cleanrooms and controlled production areas
• Pharmaceutical manufacturing facilities
• Food processing and packaging plants
• Electronics manufacturing workshops
• Laboratories and research facilities
• Cold storage and temperature-controlled areas
• Logistics warehouses and material handling passages
• Automated production lines and AGV operating areas

For facilities requiring reduced air movement, dust control, and stable environmental conditions, interlocking high speed doors provide a practical solution for managing access between different areas.

6. Interlocking High Speed Door Manufacturer – MEGODOOR

MEGODOOR (Nanjing Megodoor Co., Ltd.) is an industrial door manufacturer in China, offering high speed roll up doors, PVC high speed doors, rigid high speed doors, and interlocking high speed door systems.

With experience supplying industrial doors to international markets, MEGODOOR provides customized door solutions for cleanrooms, manufacturing facilities, warehouses, and automated production lines.

We can design door structures and control systems according to opening dimensions, operating environments, electrical requirements, and automation integration needs.

Whether your project requires a standard two-door interlocking system or a customized multi-door control solution, MEGODOOR can provide suitable industrial door configurations.

Contact MEGODOOR for customized interlocking high speed door solutions.
