A Loading Dock Safety Barrier is an industrial safety protection device designed for warehouses, distribution centers, factories, and logistics facilities. It is installed across loading dock openings to help reduce the risk of accidental falls and unauthorized access to exposed dock edges.MEGODOOR (Nanjing Megodoor Co., Ltd.) manufactures retractable loading dock safety barriers with reinforced curtain structures and steel support posts. Our products are designed for industrial loading dock applications and can be customized according to opening dimensions, installation conditions, and project requirements.With a maximum customized width of 5000 mm, MEGODOOR loading dock safety barriers are suitable for different warehouse and industrial loading dock configurations.
1. Retractable Design for Loading Dock Safety
MEGODOOR retractable loading dock safety barriers consist of steel support posts, a reinforced flexible safety curtain, a retractable mechanism, and a locking device.
When the loading dock is not in use, the operator can pull the safety curtain across the opening and secure it to the opposite support post, creating a visible physical barrier.
When a truck arrives and loading or unloading operations are ready to begin, the safety curtain can be released and retracted into the side housing, allowing forklifts and material handling equipment to pass through.
The retractable design provides several practical features:
- Manual opening and closing
- Retractable curtain for convenient storage
- Reinforced flexible barrier structure
- High-visibility safety colors
- Side-mounted steel support posts
- Customized dimensions for loading dock applications
This design is suitable for loading docks requiring frequent opening and closing during daily warehouse operations.
2. Reinforced Structure for Industrial Applications
MEGODOOR offers reinforced retractable loading dock safety barriers designed for industrial environments.
The barrier uses steel support posts combined with a flexible curtain and horizontal reinforcement elements.
Main structural components include:
Steel Support Posts
The vertical support posts provide mounting support for the safety curtain and retractable mechanism. The structure can be configured according to the installation requirements.
Reinforced Safety Curtain
The flexible safety curtain incorporates reinforcement elements to provide a physical barrier across the loading dock opening.
Retractable Mechanism
The retractable structure allows the curtain to be extended when protection is required and stored when loading dock access is needed.
Locking System
A locking mechanism secures the safety curtain to the opposite support post during use.
High-Visibility Colors
The yellow support structure and red safety curtain provide visual contrast to help personnel identify the loading dock barrier.
Actual impact resistance depends on the barrier construction, installation method, anchoring conditions, and tested product configuration.

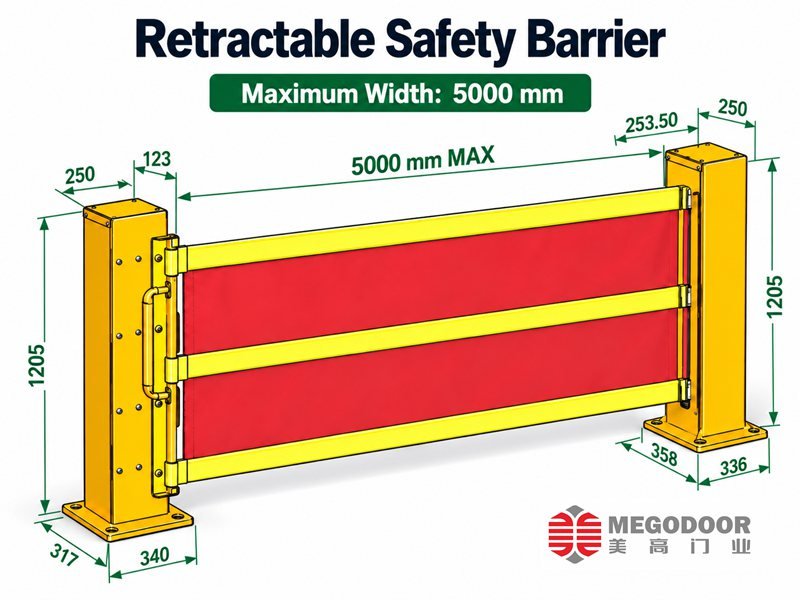

3. Customized Widths Up to 5000 mm
MEGODOOR manufactures retractable loading dock safety barriers according to different loading dock dimensions.
The maximum available customized barrier width is 5000 mm, subject to product configuration and installation requirements.
General Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Loading Dock Safety Barrier |
| Product Type | Reinforced Retractable Safety Barrier |
| Manufacturer | MEGODOOR |
| Country of Manufacture | China |
| Maximum Custom Width | 5000 mm |
| Barrier Height | Approx. 1200 mm, depending on configuration |
| Operation | Manual Retractable |
| Support Structure | Steel Posts |
| Barrier Material | Reinforced Flexible Safety Curtain |
| Installation | Floor-Mounted Support Posts |
| Curtain Colors | Red with Yellow Reinforcement |
| Customization | Available |
Product dimensions and structural details can be adjusted according to the customer’s installation requirements. Final specifications should be confirmed before production.
4. Applications of Loading Dock Safety Barriers
MEGODOOR loading dock safety barriers can be used in various industrial and logistics environments.
Warehouses
Installed across loading dock openings to provide visible separation from exposed dock edges when loading operations are not taking place.
Distribution Centers
Suitable for facilities with frequent truck loading and unloading, where retractable barriers allow convenient access between operations.
Industrial Loading Docks
Can be installed alongside sectional overhead doors, hydraulic dock levelers, dock shelters, and other loading dock equipment.
Manufacturing Facilities
Suitable for loading and unloading areas where employees and material handling equipment operate near elevated dock edges.
Logistics and Material Handling Areas
Can be used as part of a loading dock safety arrangement, with barrier configuration selected according to the site’s operating conditions and required protection level.
5. Benefits of Retractable Loading Dock Safety Barriers
Compared with fixed guardrails, retractable loading dock safety barriers offer flexible access for loading and unloading operations.
Convenient Access
The retractable curtain can be opened when dock access is required and secured across the opening when the dock is not in use.
Space-Saving Structure
The curtain retracts into the side housing, reducing obstruction around the dock opening.
Visible Safety Separation
High-visibility colors help identify the barrier and the location of the loading dock edge.
Customizable Dimensions
Barrier dimensions can be selected according to the dock opening width and installation requirements.
Integration with Loading Dock Equipment
Retractable barriers can be used alongside industrial overhead doors, dock levelers, and dock shelters, subject to the installation arrangement.
6. Loading Dock Safety Barrier Manufacturer – MEGODOOR
MEGODOOR (Nanjing Megodoor Co., Ltd.) is an industrial door and loading dock equipment manufacturer in China.
We provide a range of products for warehouses, logistics centers, manufacturing facilities, and industrial buildings.
Our product range includes:
- Loading Dock Safety Barriers
- Retractable Loading Dock Barriers
- Industrial Sectional Overhead Doors
- PVC High Speed Roll Up Doors
- Hydraulic Dock Levelers
- Mechanical Dock Shelters
- Inflatable Dock Shelters
- Vehicle Restraint Systems
- Industrial Safety Protection Equipment
For international customers, MEGODOOR offers customized dimensions, export wooden packaging, and English product documentation.
We can also provide loading dock equipment configurations based on the customer’s project specifications.
7. Frequently Asked Questions
What is a loading dock safety barrier?
A loading dock safety barrier is a protective device installed across a loading dock opening to provide physical separation from an exposed dock edge. Different barrier designs offer different levels of protection depending on their construction and verified performance.
What is the maximum width of a MEGODOOR retractable loading dock safety barrier?
MEGODOOR offers customized retractable loading dock safety barriers with widths up to 5000 mm, depending on the selected configuration.
Can the barrier be customized for different dock openings?
Yes. Barrier dimensions and installation arrangements can be customized according to the loading dock dimensions and project requirements.
Is the loading dock safety barrier manually operated?
The standard retractable configuration uses manual operation. The safety curtain can be pulled across the opening and secured using the locking mechanism.
Can the barrier stop a forklift from falling off a loading dock?
The ability to resist forklift impact depends on the specific product design, vehicle characteristics, anchoring system, and verified impact performance. The required protection level must be confirmed before selecting a barrier for this application.
8. Contact MEGODOOR for Loading Dock Safety Barriers
Looking for a Loading Dock Safety Barrier Manufacturer in China?
MEGODOOR provides reinforced retractable loading dock safety barriers with customized widths up to 5000 mm for warehouses, factories, distribution centers, and industrial loading docks.
To request a quotation, please provide your loading dock opening width, installation dimensions, intended application, and any required impact protection specifications.
Our team can review your requirements and provide suitable product information.
MEGODOOR – Industrial Door and Loading Dock Equipment Manufacturer in China
