Fire Station Garage Doors

Fire station garage doors are specially designed industrial overhead doors for fire stations, emergency rescue centers, and emergency response facilities. Powered by an electric lifting system, the door opens vertically and then travels along the ceiling, maximizing interior space while ensuring rapid access for fire trucks and rescue personnel.

MEGODOOR provides customized Fire Station Garage Doors featuring fire alarm linkage, RS485 and Ethernet communication, full vision transparent panels or insulated sectional panels, and custom red or blue finishes to meet the operational requirements of modern fire stations.

Fast Emergency Opening for Fire Rescue

Every second matters during an emergency. Once a fire alarm or dispatch signal is activated, all garage doors can automatically receive the emergency command and open simultaneously, allowing fire engines to leave the station without delay.

MEGODOOR Fire Station Garage Doors are engineered for high-speed, reliable operation, helping firefighters respond quickly to emergency situations.

Fire Alarm Linkage System

The garage door can be integrated directly with the fire station’s emergency control system.

Key functions include:

  • Automatic opening upon fire alarm activation
  • One-touch simultaneous opening of multiple doors
  • Centralized control from the fire control room
  • Emergency priority operation
  • Reliable response with minimal delay

The intelligent linkage system significantly improves dispatch efficiency and reduces response time.

RS485 & Ethernet Communication

To meet the requirements of modern intelligent fire stations, MEGODOOR doors support multiple communication methods, including:

  • RS485 communication
  • Ethernet communication
  • PLC integration
  • Building Management System (BMS) connection
  • Fire alarm control system integration
  • Remote monitoring and control

Reserved communication interfaces make future system upgrades and automation integration simple and convenient.

Multiple Door Panel Options

Different fire stations have different architectural and operational requirements. MEGODOOR offers two panel options:

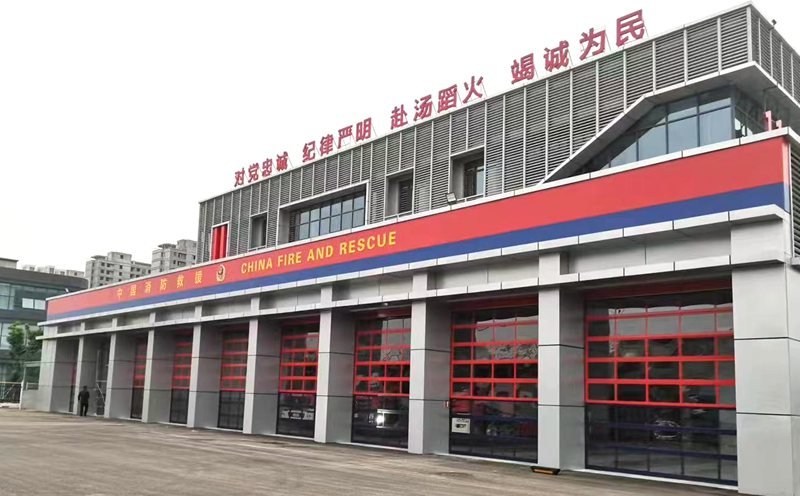

Full Vision Transparent Panels

Transparent aluminum-framed panels provide:

  • Excellent natural lighting
  • Better visibility inside and outside the station
  • Modern architectural appearance
  • Enhanced operational safety

These doors are ideal for newly constructed fire stations with contemporary designs.

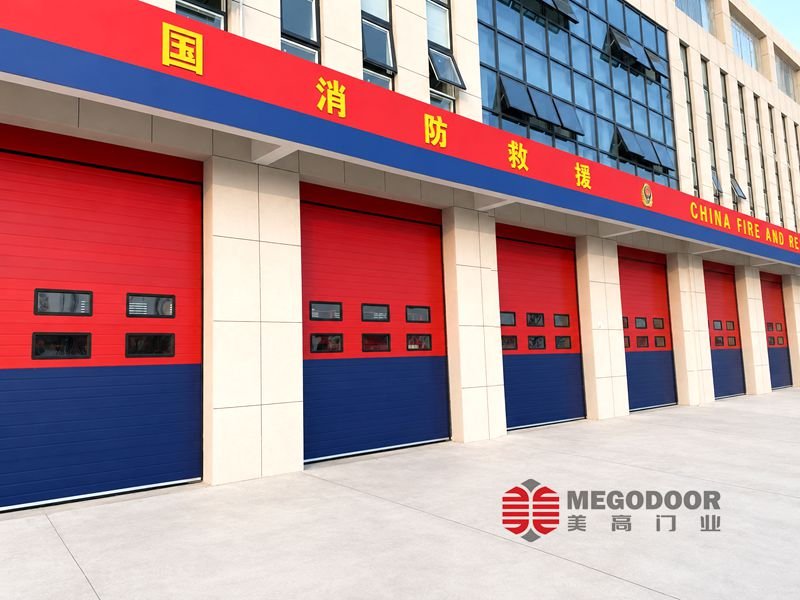

Insulated Steel Panels

Steel sectional panels filled with polyurethane insulation offer:

  • Excellent thermal insulation
  • Energy savings
  • Strong wind resistance
  • Reduced operating noise
  • Long service life

They are well suited for cold climates and all-weather applications.

Custom Red or Blue Colors

Fire stations often require doors that match their architectural identity.

MEGODOOR offers customized finishes including:

  • Single-side red
  • Double-side red
  • Single-side blue
  • Double-side blue
  • Other custom RAL colors

The powder-coated steel panels provide excellent corrosion resistance, weather resistance, and an attractive appearance while maintaining long-term durability.

High-Speed Opening

Fire station garage doors are designed for rapid operation.

Typical features include:

  • Opening speed: 0.2–0.7 m/s
  • A 4.2-meter-high door can be fully opened in approximately 20 seconds
  • Smooth and stable operation
  • Low energy consumption
  • High-frequency operation capability

The torsion spring counterbalance system offsets the weight of the door, reducing motor load while ensuring safe and reliable operation.

Optional Personnel Access Door

A built-in personnel door can be added for convenient daily access.

Optional features include:

  • Magnetic lock
  • Access control system
  • Authorized personnel management
  • Improved daily operational efficiency

This minimizes unnecessary opening of the main garage door while enhancing security.

Centralized Fire Control Room Management

Fire station garage doors are typically connected to a centralized control room equipped with fire alarm and emergency control systems.

The control room enables:

  • Remote opening and closing
  • Emergency dispatch control
  • Real-time door status monitoring
  • Centralized management of multiple garage doors
  • Automatic emergency response

Control cables and power cables are connected directly to the control cabinet, allowing operators to manage all doors from one location.

Why Choose MEGODOOR Fire Station Garage Doors?

  • Fire alarm automatic linkage
  • RS485 and Ethernet communication
  • High-speed emergency opening
  • Full vision or insulated panel options
  • Custom red and blue door colors
  • Intelligent servo control system
  • Remote centralized control
  • Durable powder-coated finish
  • Professional engineering support
  • Customized solutions for fire stations worldwide

Applications

MEGODOOR Fire Station Garage Doors are widely used in:

  • Fire stations
  • Emergency rescue centers
  • Municipal fire brigades
  • Airport fire stations
  • Industrial emergency response centers
  • Petrochemical fire departments
  • Military emergency facilities

MEGODOOR Fire Station Garage Doors are engineered to deliver fast, reliable, and intelligent operation for emergency response facilities. Featuring fire alarm linkage, RS485 and Ethernet communication, high-speed opening, transparent or insulated door panels, and custom red or blue finishes, our doors help firefighters respond more efficiently while enhancing the safety, functionality, and appearance of modern fire stations.
