In industries such as pharmaceuticals, electronics, food processing, and new energy manufacturing, air shower rooms play a critical role in maintaining cleanroom environments. Many older facilities were originally equipped with manual swing doors, which can no longer meet the requirements of modern automated production systems.
To improve efficiency, cleanliness, and automation, MEGODOOR provides professional air shower door retrofit solutions by replacing traditional manual doors with automated PVC high speed doors. The upgraded system supports interlocking with air shower controllers, automatic door switching, AGV communication, and intelligent access control.
Why Upgrade Traditional Air Shower Doors?
Many older air shower rooms still use manual steel or stainless steel swing doors, which often create several challenges:
Low Traffic Efficiency
Employees and operators must manually open and close doors, slowing down personnel and material flow.
Poor Sealing Performance
Manual doors may not close completely, making it difficult to maintain cleanroom pressure differentials.
Lack of Automation
Traditional swing doors cannot communicate with:
- Air shower control systems
- AGV (Automated Guided Vehicle) systems
- Access control systems
- PLC automation systems
Limited Interlock Functions
Mechanical interlock systems used in older installations often require frequent maintenance and offer limited reliability.
As factories move toward intelligent manufacturing, automated air shower door upgrades have become increasingly popular.

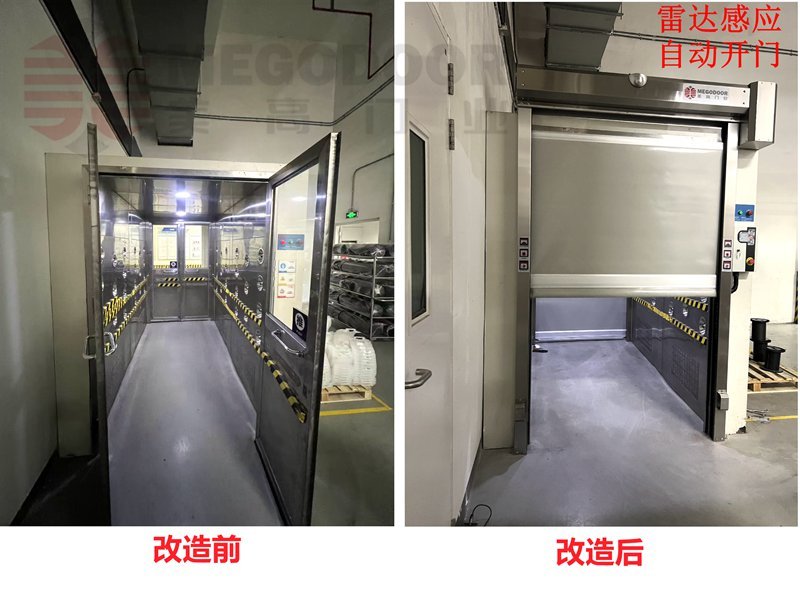

MEGODOOR Air Shower Door Retrofit Solution
For cleanroom renovation projects, MEGODOOR recommends PVC High Speed Doors specifically designed for cleanroom applications.
Automatic Door Operation
Doors can be activated automatically through:
- Touchless sensors
- Motion radar sensors
- Facial recognition systems
- Card readers
- Fingerprint access systems
This eliminates manual operation and improves workflow efficiency.
Air Shower Interlock Integration
The high speed door can communicate directly with the air shower control system.
Operating sequence:
- When the outer door opens, the inner door remains locked.
- After the outer door closes, the air shower cycle begins.
- Once the air shower process is completed, the inner door unlocks automatically.
- Both doors cannot be opened simultaneously.
This prevents cross-contamination between clean and non-clean areas.
Automatic Door Switching
When personnel enter the air shower room:
- The first door closes automatically.
- The air shower process starts.
- After completion, the second door opens automatically.
The entire process operates without manual intervention, improving operational efficiency and contamination control.

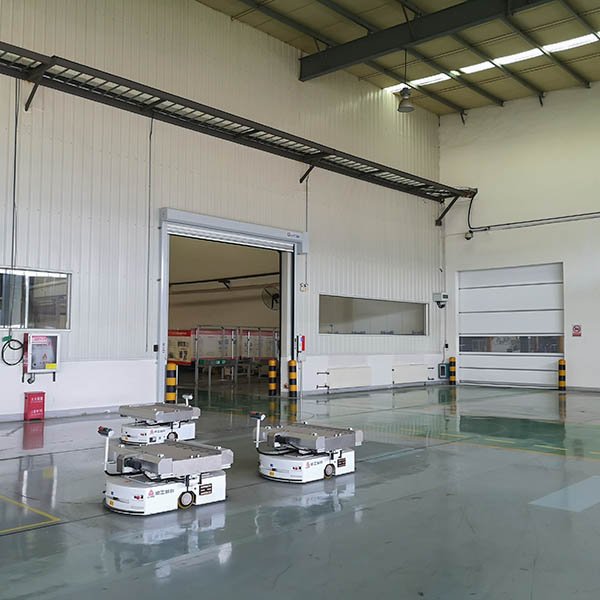

AGV Communication and Automation Integration
With the growing adoption of AGV systems in smart factories and automated warehouses, door communication has become increasingly important.
MEGODOOR Cleanroom High Speed Doors support:
- Dry contact I/O communication
- RS485 communication
- Modbus protocol
- PLC integration
- Ethernet communication (optional)
- Wireless communication modules (optional)
Functions include:
- Automatic door opening when AGV arrives
- Automatic closing after AGV passes
- Door status feedback
- Fully-open signal feedback
- Fully-closed signal feedback
- Fault alarm feedback
This enables seamless integration with intelligent factory automation systems.
Cleanroom-Specific Design
To meet the requirements of pharmaceutical, electronics, and food production environments, MEGODOOR cleanroom doors incorporate several advanced features.
Stainless Steel Structure
Available in:
- 304 Stainless Steel
- 316 Stainless Steel
Providing excellent corrosion resistance and easy cleaning.
Cleanroom Polymer Guide Tracks
Special cleanroom guide systems offer:
- Dust-free design
- Smooth operation
- Excellent sealing performance
Pressure Differential Control
The door system helps maintain pressure differences above 30Pa, supporting cleanroom environmental control requirements.
Self-Recovery Function
If an AGV or forklift accidentally impacts the curtain:
- The curtain disengages safely from the guide
- Automatically resets itself
- Returns to normal operation without manual intervention
This minimizes downtime and maintenance costs.
Applications
MEGODOOR Air Shower High Speed Door Retrofit Solutions are widely used in:
- Pharmaceutical plants
- Medical device manufacturing facilities
- Food processing factories
- Electronics cleanrooms
- Lithium battery production plants
- Semiconductor facilities
- Precision manufacturing workshops
Particularly suitable for:
- Air shower room modernization projects
- AGV automation upgrades
- Cleanroom expansion projects
- Smart factory construction
As intelligent manufacturing and clean production standards continue to evolve, traditional manual air shower doors are becoming increasingly outdated.
By upgrading to MEGODOOR Cleanroom PVC High Speed Doors, manufacturers can achieve:
- Automatic door operation
- Air shower interlocking
- Pressure differential control
- AGV communication
- PLC integration
- Enhanced cleanliness and productivity
MEGODOOR provides complete turnkey solutions including system design, communication integration, installation, commissioning, and after-sales support, helping factories build smarter, cleaner, and more efficient production environments.
