In modern automated production lines, robotic workstations, conveyor systems, and intelligent manufacturing equipment, a special type of industrial door is often used—the Inverted Roll-Up Door, also known as an Inverted High-Speed Door.Many customers wonder why this door opens from the bottom upward and how it differs from a conventional PVC high-speed door. As a professional industrial door manufacturer, MEGODOOR would like to explain the working principle, advantages, and applications of this unique door system.

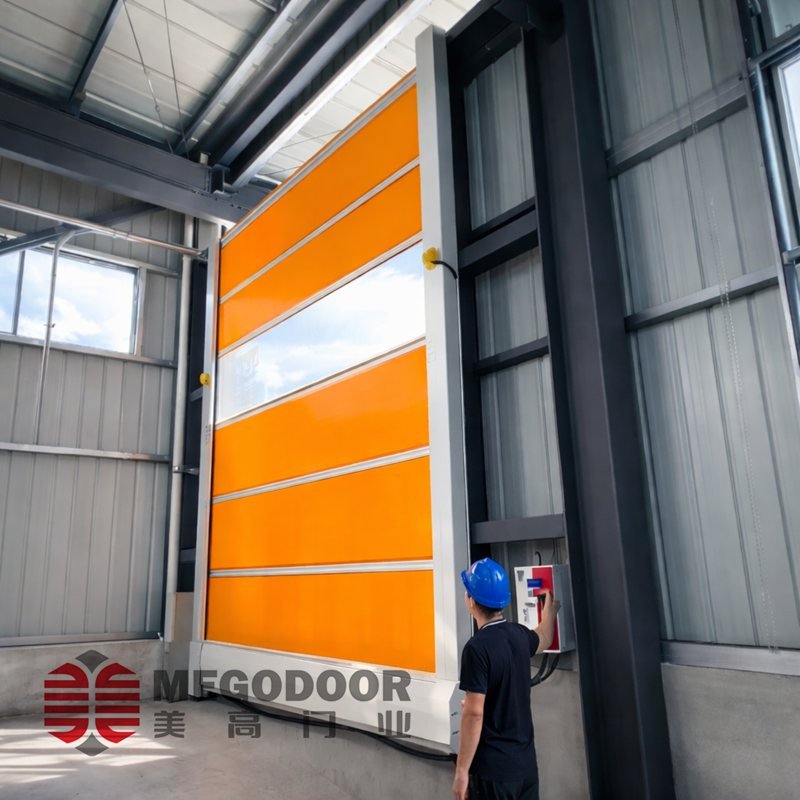

What Is an Inverted Roll-Up Door?
To understand an inverted roll-up door, it is helpful to first look at a standard high-speed door.A conventional PVC high-speed door has its roll shaft and hood mounted above the doorway. Driven by a servo motor, the curtain travels downward to close and rolls upward into the top hood to open.An inverted roll-up door operates in the opposite way.The roll shaft and storage box are installed at the bottom of the opening, close to the floor. During operation, the PVC curtain is pushed upward to open and retracts back into the lower housing when closed.
Because of this unique structure, it is also referred to as:
- Inverted High-Speed Door
- Bottom-Roll High-Speed Door
- Equipment Protection Door
- Upward-Opening Roll-Up Door
This design is specifically developed for applications where overhead installation space is limited.
Why Are Inverted Roll-Up Doors Used on Automated Equipment?
Many automated machines have components installed above the opening, such as:
- Industrial robots
- Robot tracks
- Conveyor systems
- Lifting mechanisms
- Automated tooling systems
In these situations, there is often no space available for a conventional top-mounted roll-up door.An inverted roll-up door solves this problem by placing the roll mechanism at floor level, making it an ideal solution for automated equipment and machine enclosures.
Advantages of Inverted Roll-Up Doors
1. Saves Overhead Installation Space
The bottom-mounted roll-up design eliminates the need for a top housing, allowing equipment manufacturers to maximize the available space above the opening.
This makes the door suitable for:
- Packaging machines
- Laser processing equipment
- Inspection machines
- Robotic workstations
- Automated production lines
2. High-Speed Operation
MEGODOOR inverted roll-up doors are equipped with high-performance servo control systems and can achieve opening speeds of:
- 1.0–1.2 m/s
The door can reliably operate:
- 600–800 cycles per day
This performance fully meets the requirements of high-frequency automated production environments.
3. Equipment Communication and Interlocking
Designed specifically for automation applications, MEGODOOR inverted roll-up doors can be integrated with equipment through various communication methods, including:
- Dry-contact I/O signals
- RS485 communication
- Modbus communication
- PLC control systems
- Robot controller integration
- AGV communication systems
This allows the door to automatically open, close, or lock according to machine operating conditions.
4. Enhanced Safety Protection
Since the door moves upward from the floor, safety protection is particularly important.
MEGODOOR doors are equipped with:
- Wireless safety edge
- Safety airbag bottom edge
- Infrared protection sensors
- Obstacle detection system
- Automatic reverse function
- Fault monitoring and alarm functions
If an obstacle is detected during operation, the door immediately stops and reverses to prevent damage to equipment or injury to personnel.
5. Durable PVC Curtain
The curtain is manufactured from high-strength industrial-grade PVC material, offering:
- Dust protection
- Debris isolation
- Easy cleaning
- Long service life
- Reliable separation between work zones
It is widely used for machine protection and automated process isolation.

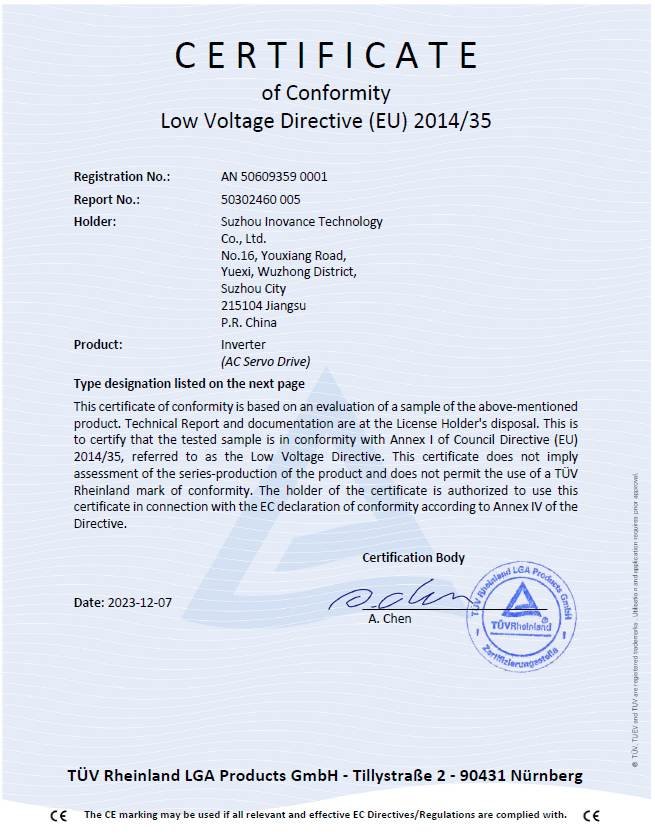

CE and UL Certified Control Systems for Global Projects
As more automated equipment is exported to international markets, compliance with global electrical standards has become increasingly important.
MEGODOOR inverted roll-up doors can be equipped with:
- CE-certified servo control systems
- UL-certified electrical control systems
- English-language operator interface
- Multi-language parameter settings
- Customized voltages including 110V, 220V, 380V, 440V, and 480V
These configurations are suitable for projects in Europe, North America, Southeast Asia, and other international markets.
Typical Applications
MEGODOOR inverted roll-up doors are widely used in:
- Automated production lines
- Lithium battery manufacturing equipment
- Laser cutting machines
- Packaging equipment
- Inspection systems
- Robotic workstations
- Conveyor protection systems
- Automatic loading and unloading equipment
- AGV logistics systems
- Smart manufacturing facilities
They are especially suitable for equipment with limited overhead space that requires fast and automatic access control.
An inverted roll-up door is a specialized high-speed door designed for automated equipment and machinery protection. Unlike conventional high-speed doors, it features a bottom-mounted roll mechanism and an upward-opening curtain, making it ideal for installations where overhead space is restricted.
With fast operation, advanced safety protection, equipment communication capabilities, and optional CE and UL certified control systems, MEGODOOR inverted roll-up doors provide a reliable and efficient solution for modern automation projects worldwide.
Whether for machine enclosures, robotic cells, or automated production lines, MEGODOOR can provide customized inverted PVC roll-up doors tailored to your equipment dimensions, communication requirements, and international compliance standards.
