How to Choose Magnetic Induction Doors for Warehouses?

PVC High Speed Doors and Hard High Speed Doors Application Guide

In modern warehouse and logistics centers, forklifts, AGVs, and logistics vehicles move frequently through different working areas. Traditional manual doors are becoming less suitable for high-efficiency logistics operations. More and more companies are using warehouse doors with magnetic induction systems to achieve automatic door opening and improve transportation efficiency.

At present, the two commonly used warehouse magnetic induction doors are:

  • PVC High Speed Doors
  • Hard High Speed Doors

Both door types support magnetic induction automatic opening and are suitable for warehouse logistics passages, workshop entrances, automated transportation areas, and other industrial applications.

What Is a Warehouse Magnetic Induction Door?

A warehouse magnetic induction door is an industrial door equipped with a ground magnetic induction system that detects vehicles and automatically opens the door.

When the magnetic sensor detects forklifts, AGVs, or logistics vehicles approaching, the door opens automatically. After the vehicle passes through, the door closes automatically.

This operating method can reduce manual operation, improve logistics efficiency, and help reduce dust entry and air exchange caused by doors remaining open for long periods.

Typical applications include:

  • Warehouse logistics channels
  • Automated workshops
  • AGV transportation areas
  • Forklift traffic passages
  • Food storage facilities
  • Pharmaceutical cleanrooms
  • Cold chain logistics areas

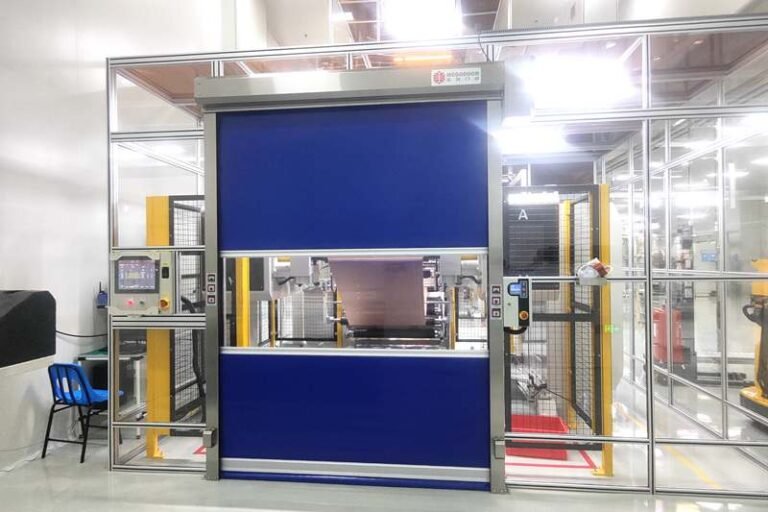

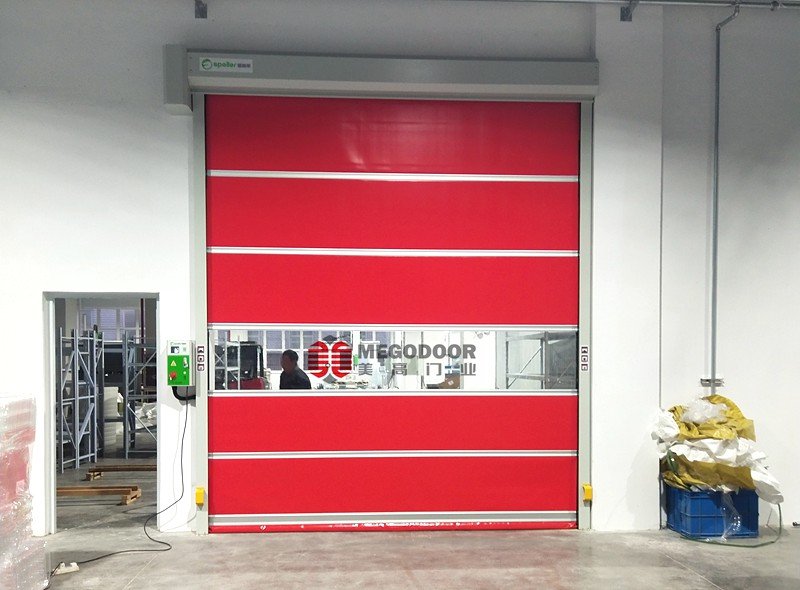

1. PVC High Speed Doors: Suitable for Medium and Small Warehouse Openings

PVC high speed doors are widely used in warehouse applications.

Because of their relatively lightweight structure, they are generally more cost-effective and suitable for projects with budget considerations.

Where Are PVC High Speed Doors Suitable?

They are commonly used for:

  • Door openings smaller than 4000mm × 4000mm
  • Frequent forklift traffic areas
  • General warehouse logistics passages
  • Internal workshop separation areas
  • Dust isolation applications

The PVC curtain is typically made of approximately 0.8mm thick PVC material, making the overall door lightweight and suitable for fast operation.

Opening speed can generally reach:

  • 1.0-2.0 m/s

Combined with a magnetic induction system, the door can automatically open when vehicles approach, helping improve traffic efficiency.

Features of PVC High Speed Doors

1. Fast Opening and Closing Speed

Suitable for high-frequency logistics traffic.

2. Cost-Effective Solution

Suitable for medium and small warehouse projects.

3. Dust Isolation Performance

Suitable for workshop area separation.

4. Multiple Control Options

In addition to magnetic induction, the door can also support:

  • Radar sensors
  • Pull cord switches
  • Remote control
  • Push buttons
  • Access control systems

2. Hard High Speed Doors: Suitable for Higher Performance Requirements

For large warehouses, external entrances, and applications requiring thermal insulation, more companies are choosing hard high speed doors.

Compared with PVC high speed doors, hard high speed doors offer different advantages in:

  • Thermal insulation
  • Wind resistance
  • Operational stability
  • Service life
  • Security performance

Structure of Hard High Speed Doors

Hard high speed doors usually use:

  • 40mm polyurethane foam insulated panels
  • Double-sided 0.7mm aluminum alloy surface panels

This structure provides higher overall strength while also improving thermal insulation performance.

Opening speed can also reach:

  • 1.0-2.0 m/s

Suitable applications include:

  • Large warehouses
  • Exterior entrances
  • Cold chain logistics
  • Automated storage systems
  • New energy manufacturing workshops
  • Areas with higher wind pressure

Suitable Applications for Hard High Speed Doors

1. Warehouses Requiring Thermal Insulation

Polyurethane insulated panels help reduce air exchange.

2. Applications Requiring Wind Resistance

Suitable for some external logistics entrances.

3. Projects Requiring Stronger Door Structures

The rigid door panels provide higher structural stability.

4. Automated Logistics Systems

The doors can support communication and linkage with:

  • AGVs
  • RGVs
  • Conveyor systems
  • Automated warehouse systems

3. How to Choose Between PVC High Speed Doors and Hard High Speed Doors?

When to Choose PVC High Speed Doors

PVC high speed doors may be suitable if your warehouse:

  • Has relatively small door openings
  • Requires budget control
  • Is mainly used for internal area separation
  • Does not have high wind resistance requirements

When to Choose Hard High Speed Doors

Hard high speed doors may be suitable if your project:

  • Has large door openings
  • Requires thermal insulation
  • Is used for external logistics entrances
  • Requires higher wind resistance
  • Needs stronger door structures

4. Development Trend of Magnetic Induction Doors in Smart Warehouses

With the development of smart logistics and automated warehousing, magnetic induction high speed doors are increasingly used in:

  • AGV transportation systems
  • Unmanned forklifts
  • Automated warehouses
  • Smart factory logistics channels

Automatic induction opening can help reduce manual operation, improve logistics efficiency, and enhance environmental isolation inside warehouses.

As an industrial door manufacturer, MEGODOOR can provide PVC high speed doors, hard high speed doors, and magnetic induction control solutions according to different warehouse application requirements.
